Kia Stinger CK: Front Door / Front Door Belt Inside Weatherstrip

Kia Stinger (CK) 2018-2023 Service Manual / Body (Interior and Exterior) / Front Door / Front Door Belt Inside Weatherstrip

Repair procedures

Replacement

Put on gloves to protect your hands.

•	Use a plastic panel removal tool to remove interior trim pieces without marring the surface.

•	Take care not to bend or scratch the trim and panels.

1.	Remove the front door trim. (Refer to Front Door - "Front Door Trim")

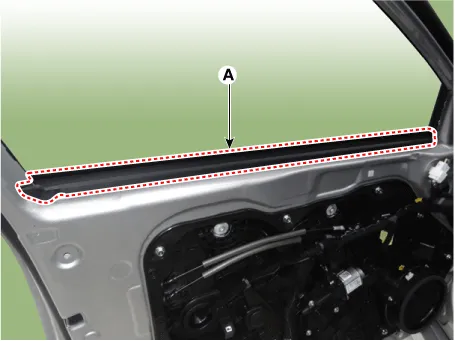

2.	Remove the front door belt inside weatherstrip (A).

Install in the reverse order of removal.

•	Make sure the connector is connected properly.

•	Make sure the door locks/unlocks and opens/closes properly.

•	Replace any damaged clips.
