Kia Stinger: Wide sunroof / Sunshade

Kia Stinger CK 2018-2024 Owners Manual / Features of your vehicle / Wide sunroof / Sunshade

To open the sunshade

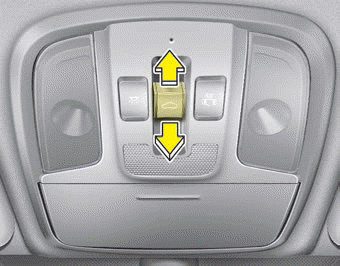

Push the sunroof control lever backward to the 1st detent position.

To close the sunshade when the sunroof glass is closed

Push the sunroof control lever forward to the 1st detent position.

To stop the sliding at any point, press the sunshade control switch momentarily.

✽ NOTICE

Wrinkles formed on the sunshade as material characteristic are normal.

CAUTION - Automatic sunroof shade

Do not pull or push the sunshade by hand as such action may damage the sunshade or cause it to malfunction.
Close the sunroof when driving in dusty environments. Dust may cause a malfunction of the vehicle system.
