Repair procedures

Drain the coolant.

(Refer to Cooling System - "Coolant")


Remove the oil filter.

(Refer to Lubrication System - "Engine Oil")

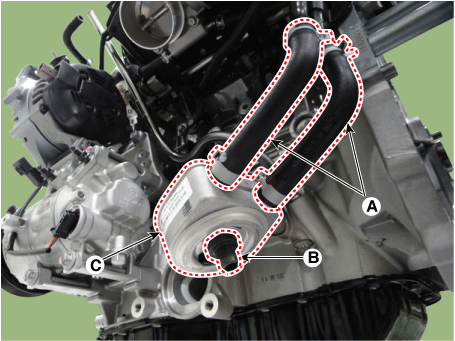

Disconnect the oil cooler coolant hoses (A).


Loosen the mounting bolt (B) and remove the oil cooler assembly (C).

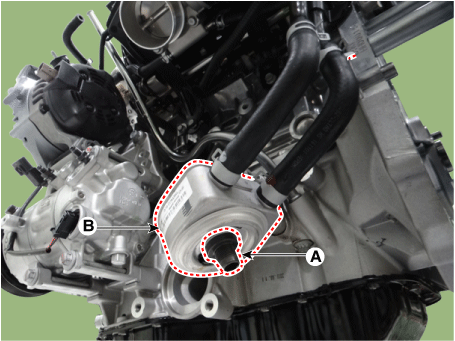

Apply a light coat of engine oil to the oil cooler packing surface and then install the oil cooler (B) with fix bolt (A).

Tightening torque:

44.1 - 53.9 N·m (4.5 - 5.5 kgf·m, 32.5 - 39.8 lb·ft)


Fix position of oil cooler stopper(A) where oil cooler resists on ladder frame stopper (B).

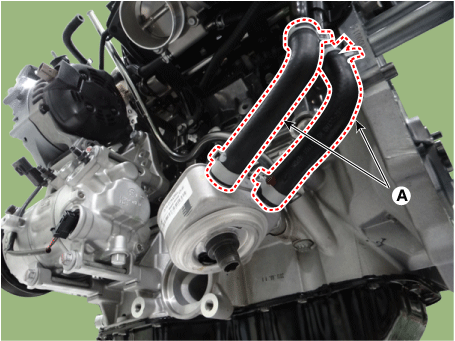

Connect the oil cooler coolant hoses (A).


Install the oil filter.

(Refer to Lubrication System - "Engine Oil")


Fill the radiator with coolant and check for leaks.
