Kia Stinger: ISG (Idle Stop & Go) System / Brake switch

Kia Stinger CK 2018-2024 Service Manual / Engine Control / Fuel System / ISG (Idle Stop & Go) System / Brake switch

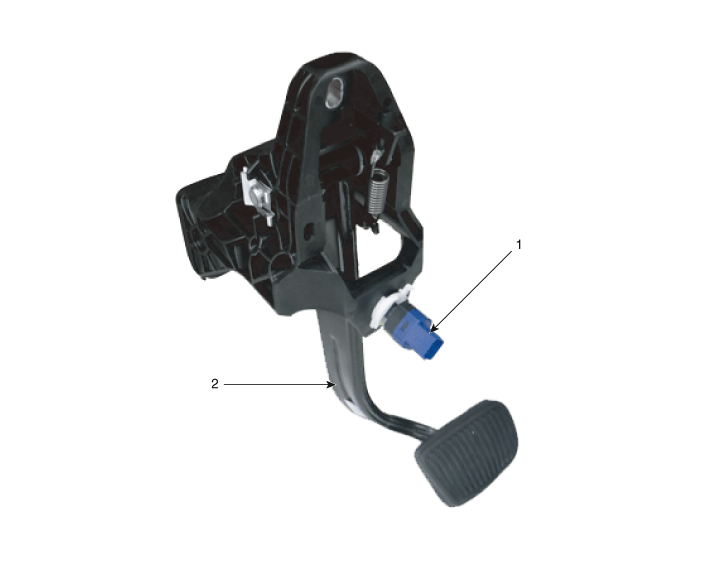

Components and components location
Components

1. Brake switch
2. Brake pedal

Schematic diagrams

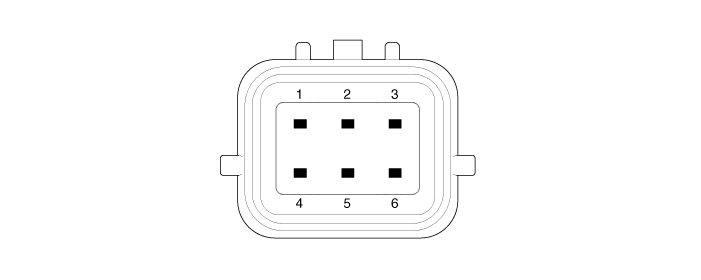

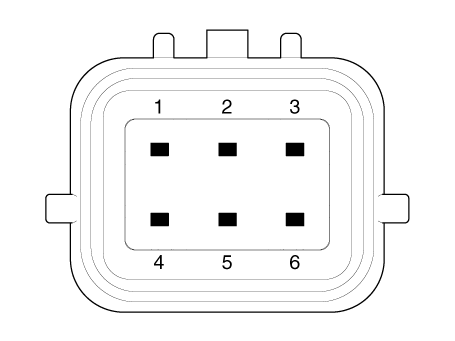

Terminal function

Pin No
Description
1
IGN1
2
IBU
3
-
4
B+
5
Stop lmap
6
Ground

Troubleshooting
Troubleshooting
1.

Part diagnosis

Items
Cause
Symptom

Switch fuse
Faulty fuse connection, Damaged fuse

DTC Code : P0504

Symptom : Shifting gear trouble, Starting failure, Cruise control function cancelation trouble, EPB function cancelation trouble, Stop lamp lighting trouble, ESP OFF light illuminated.

① A waveform inspection is performed using an oscilloscope on each part during vehicle acceleration/braking. (Refer to stop lamp switch circuit inspection procedures)

② Refer to the relevant repair procedures of the part when something abnormal is discovered in the waveform (Refer to the repair procedures of the relevant part and if necessary replace it)
Relay fuse
Faulty fuse connection, Damaged fuse

DTC Code : P0504

Symptom : Shifting gear trouble, Starting failure, Cruise control function cancelation trouble, EPB function cancelation trouble, Stop lamp lighting trouble , ESP OFF light illuminated.

Stop lamp switch

Damaged wiring of each part

Faulty connection to connector

Each part is defective

DTC Code : P0504

Symptom : Shifting gear trouble, Starting failure, Cruise control function cancelation trouble, EPB function cancelation trouble, Stop lamp lighting trouble , ESP OFF light illuminated.

Stop signal electronic
module (If it applies)

DTC Code : P0504, C2130, C2131

Symptom : Shifting gear trouble, Starting failure, Cruise control function cancelation trouble, EPB function cancelation trouble, Stop lamp lighting trouble , ESP OFF light illuminated.

Engine control module(ECM)

DTC Code : P0504

Symptom :Shifting gear trouble,Cruise control function cancelation trouble

Body control module (BCM)

Shifting gear trouble

Shift-lock solenoid

Shifting gear trouble

Inhibitor switch

Symptom : Shifting gear trouble, Starting failure, Cruise control function cancelation trouble, EPB function cancelation trouble

Smart Key Unit(SMK)

Starting failure

Electronic parking brake

Symptom : EPB function cancelation trouble , ESP OFF light illuminated.

ABS/VDC control module
(Pressure sensor)

Symptom : ESP OFF light illuminated.


2.

Symptom diagnosis

Symptom
Part that could be the cause

Trouble starting
Switch fuse, Relay fuse, Stop lamp switch, Stop signal electronic module, ABS/VDC control module, Each wire, Connector

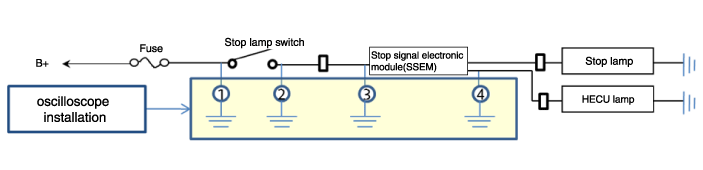

① Inspect waveform using an oscilloscope on each part during vehicle acceleration/braking. (Refer to stop lamp switch circuit inspection Procedures)

② Refer to the relevant repair procedures of the part when something abnormal is discovered in the waveform (Refer to the repair procedures of the relevant part and if necessary replace it)
Trouble shifting gears
Switch fuse, Relay fuse, Stop lamp switch, Stop signal electronic module, BCM, ECM, Inhibitor switch, Each wire, Connector
ESP OFF light illuminated
Switch fuse, Relay fuse, Stop lamp switch, Stop signal electronic module, ABS/VDC control module, Each wire, Connector
P0504
Switch fuse, Relay fuse, Stop lamp switch, Stop signal electronic module, ECM, Each wire, Connector
Stop lamp not working
Switch fuse, Relay fuse, Stop lamp switch, Stop signal electronic module, Wire/Connector disconnected
Stop lamp always
turned on
Stop lamp switch, Stop signal electronic module,
Wiring short circuit, Damaged fuse

3.

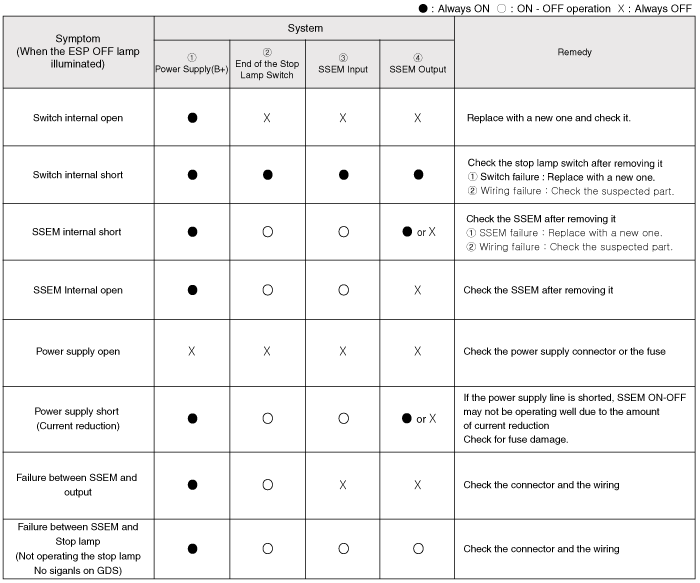

Stop lamp switch system diagnosis

SSEM : Stop Signal Electronic Module

4.

Refer to DTC guide when the related DTC codes are displayed.

Repair procedures
Removal
1.

Turn ignition switch OFF and disconnect the negative (-) battery cable.

2.

Remove the crash pad lower panel.

(Refer to Body - "Crash Pad Lower Panel")

3.

Remove the knee airbag.

(Refer to Restraint - "Knee airbag")

4.

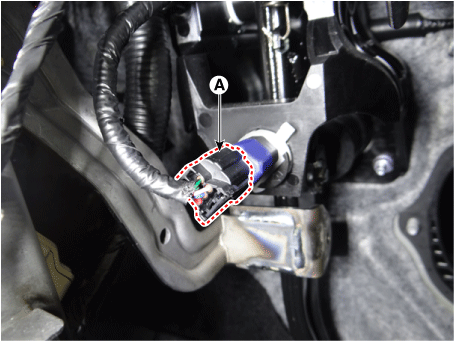

Disconnect the brake lamp switch connector (A).

5.

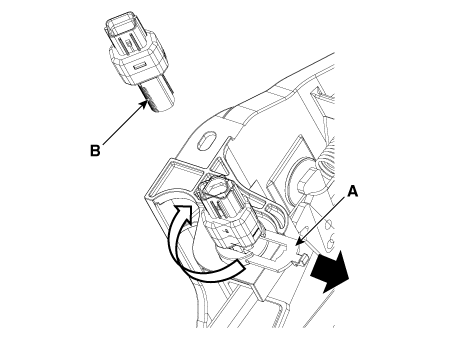

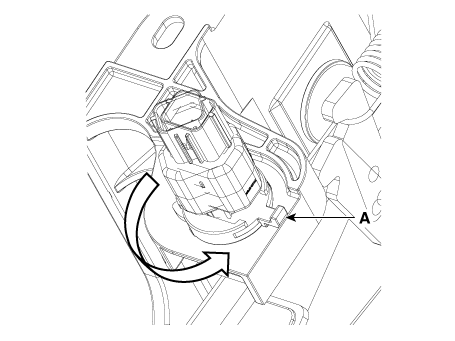

Pull the locking plate (A) as indicated by the arrow and then turn brake switch (B) 45° clockwise and remove it.

6.

Inspect a removed stop lamp switch along the below procedures.

(1)

Confirm a normal connection with terminal part.

A confirmation can be made to see if the connector has been secured properly and if a connection mark is present.

(2)

Perform the inspection of parts resistance.

Installation
1.

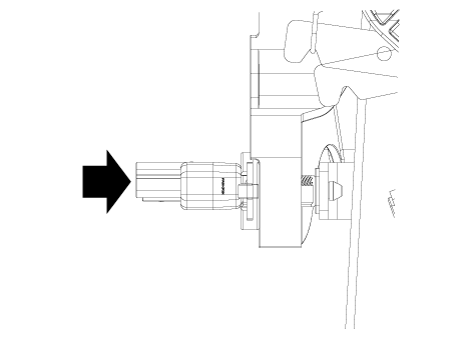

Fix the brake pedal arm and insert fully the brake switch so that the contact part is invisible.

2.

After inserting, turn the brake switch 45° counterclockwise, and then assemble locking plate by pushing.

3.

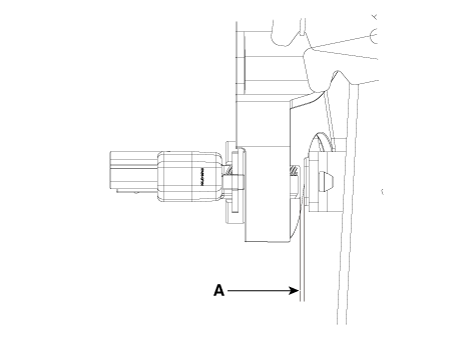

Confirm the gap between stop lamp switch and bracket.

Stop lamp clearancee (A) :

1.0 - 2.0 mm (0.04 - 0.08 in.)



If the gap between stop lamp switch and bracket is not between 1.0 - 2.0 mm (0.04 - 0.08 in), check the mounting clip and other parts around the stop lamp.

If everything is normal, reinstall the stop lamp switch and check the clearance again.

4.

Install the stop lamp switch connector (A).
