The Driver Attention Warning (DAW) system is designed to warn the driver of potentially hazardous driving situations if it detects inattentive driving practices.

System setting and activation ➤

Resetting the system, System disabled

Resetting the system

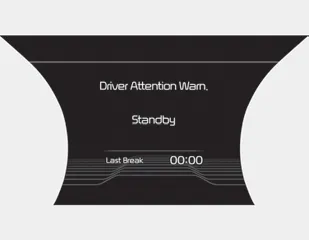

  • The last break time is set to 00:00 and the driver's attention level is set to 5 (very attentive) when the driver resets the Driver Attention Warning system.
  • The driver attention warning system resets in the following situations.
    - The engine is turned OFF.
    - The driver unfastens the seat belt and then opens the driver’s door.
    - The driver takes a break from driving that lasts more than 10 minutes.
  • The driver attention warning system operates again, when the driver restarts driving.

System disabled

The Driver Attention Warning system enters the ready status and displays the 'Disabled' screen in the following situations.

- The camera sensor is unable to detect the lanes.
- Driving speed remains under 60 km/h (37 mph) or over 180 km/h (112 mph).

System malfunction ➤

Driver's Attention

System setting and activation
