Kia Stinger: ESP(Electronic Stability Program) System / ESP OFF Switch

Kia Stinger CK 2018-2024 Service Manual / Brake System / ESP(Electronic Stability Program) System / ESP OFF Switch

Description and operation

Description

1.	The ESP OFF switch is for the user to turn off the ESP system.

2.	The ESP OFF lamp is on when ESP OFF switch is engaged.

Repair procedures

Removal

1.	Turn ignition switch OFF and disconnect the negative (-) battery cable.

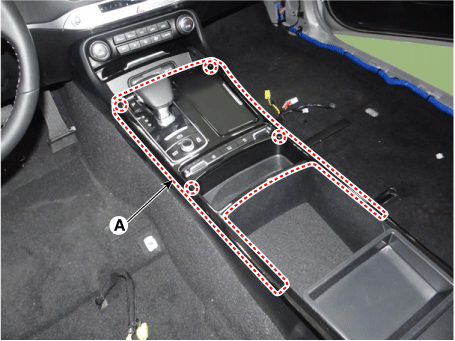

2.	Using the remover, remove the console upper cover (A).

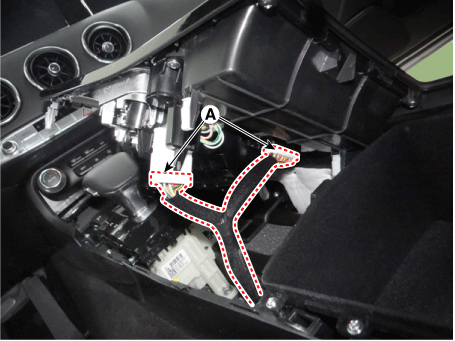

3.	Disconnect the connector (A) from the console upper complete.

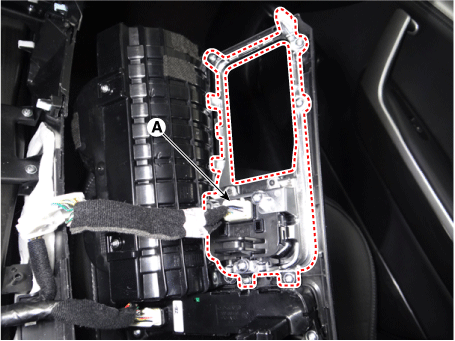

4.	Disconnect the connector (A) from the upper console.

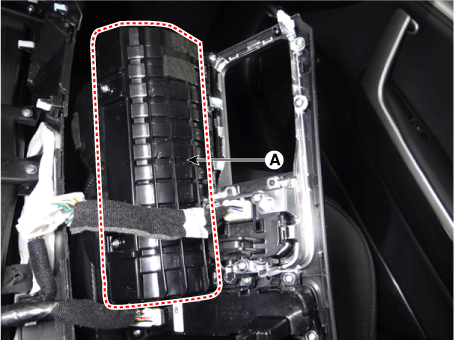

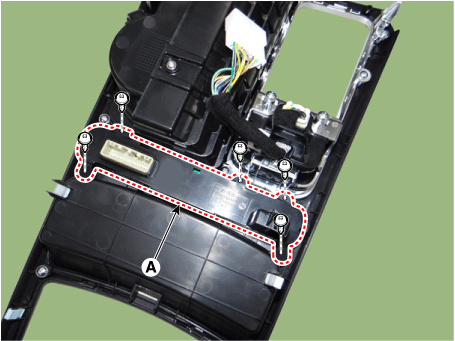

5.	Loosen the screw and then remove the console floor switch complete (A).

6.	Remove the cup holder (A).

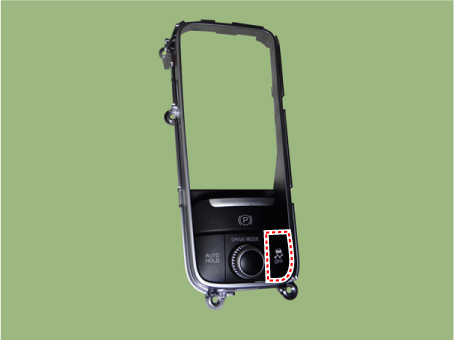

7.	Loosen the screw and then remove the ESP switch (A).

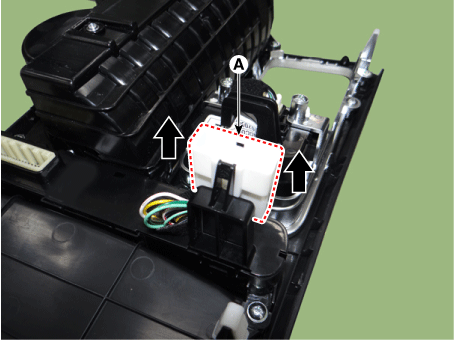

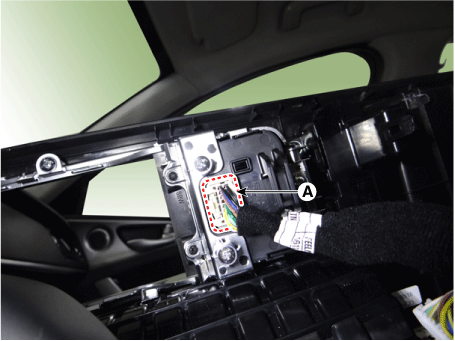

8.	Disconnec the ESP connector (A) from the upper console.

9.	Install in the reverse order of removal.
