Kia Stinger CK: Hood / Hood Assembly

Kia Stinger (CK) 2018-2023 Service Manual / Front Seat Belt / Hood / Hood Assembly

Components and components location

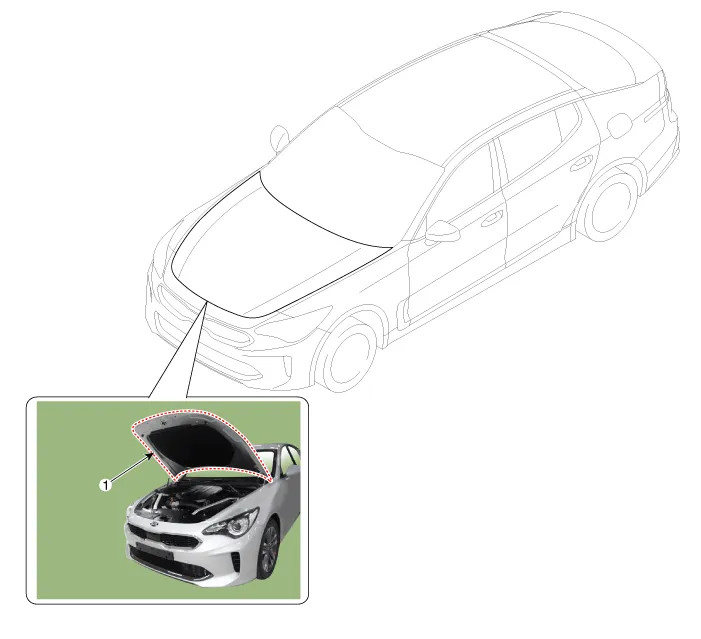

Component Location

1. Hood assembly

Repair procedures

Replacement

Be careful not to damage the hood and body.

When removing and installing the hood, work in a group of two or more.

After loosening the hood hinge (A) mounting bolts, remove the hood assembly (B).

Tightening torque :

21.6 - 26.5 N·m (2.2 - 2.7 Kgf·m, 15.9 - 19.5 lb·ft)

Install in the reverse order of removal.

•	Make sure that the hood locks/unlocks and opens/closes properly.

•	Adjust the hood alignment.
