Kia Stinger: Front Door / Front Door Side Weatherstrip

Kia Stinger CK 2018-2025 Service Manual / Body (Interior and Exterior) / Front Door / Front Door Side Weatherstrip

Repair procedures

Replacement

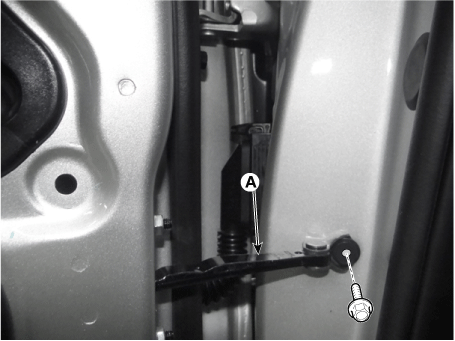

Loosen the front door checker (A) mounting bolt.

Tightening torque :

19.6 - 29.4 N·m (2.0 - 3.0 Kgf·m, 14.5 - 21.7 lb·ft)

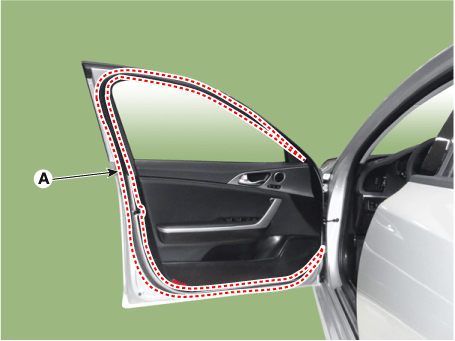

Detach the clips, then remove the front door side weatherstrip (A).

Tightening torque :

19.6 - 29.4 N·m (2.0 - 3.0 Kgf·m, 14.5 - 21.7 lb·ft)

Install in the reverse order of removal.

Replace any damaged clips.
