Kia Stinger CK: Automatic Transmission Control System / Shift Cable

Kia Stinger (CK) 2018-2023 Service Manual / Automatic Transmission System / Automatic Transmission Control System / Shift Cable

Components and components location

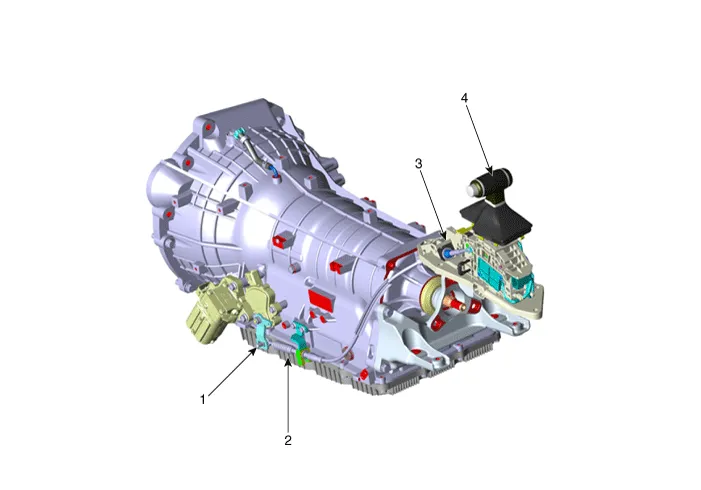

Components

1. Manual control lever
2. Shift cable
3. Shift lever assembly
4. Knob

Repair procedures
Removal
1.

Shift the gear to "N".
2.

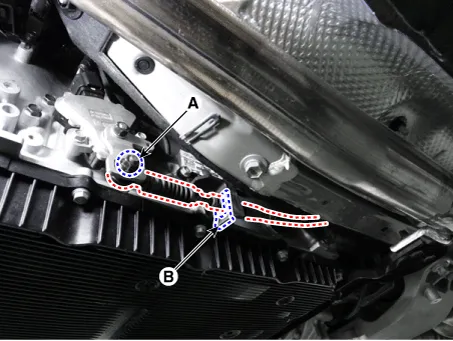

Loosen the nut (A) and remove the shift cable fixing clip (B).

Tightening torque :

9.8 - 14.7 N·m (1.0 - 1.5 kgf·m, 7.2 - 10.8 lb·ft)



When installing, the existing shift cable clip (A) must be replaced with new one. (Do not reuse it.)
3.

Remove the shift lever.

(Refer to Automatic Transmission Control System - "Shift lever")

4.

Then, remove the shift cable by pulling it toward the vehicle interior.
Installation
1.

Install in the reverse order of removal.

Shift Lever

Automatic Transmission System
