Kia Stinger: Body Side Molding / Hood Garnish

Kia Stinger CK 2018-2025 Service Manual / Body (Interior and Exterior) / Body Side Molding / Hood Garnish

Repair procedures

Replacement

Put on gloves to protect your hands.

•	Use a plastic panel removal tool to remove interior trim pieces without marring the surface.

•	Take care not to bend or scratch the trim and panels.

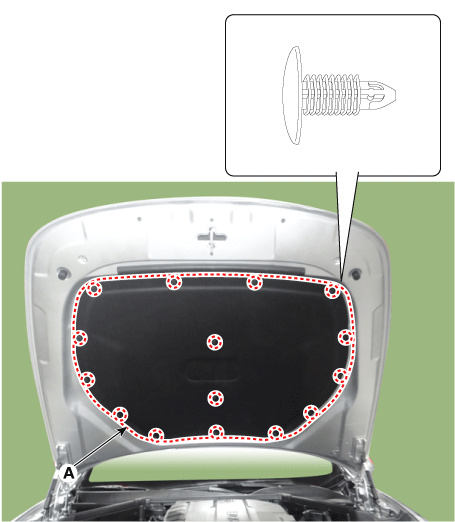

1.	Remove the hood insulator pad (A) after removing the mounting clips.

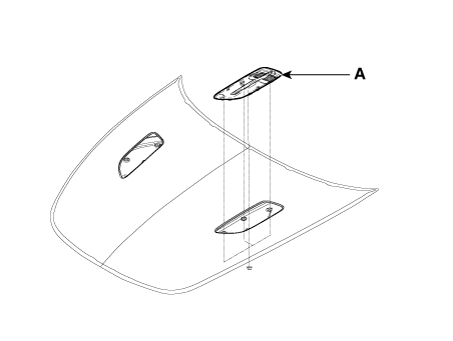

2.	Remove the hood garnish (A) after loosing the mounting nuts.

Install in the reverse order of removal.

Replace any damaged clips.
