Kia Stinger CK: Windshield defrosting and defogging / Defogging logic
Contents:
To reduce the possibility of fogging up the inside of the windshield, the air
intake or air conditioning is controlled automatically according to certain conditions
such as
or
position. To cancel automatic defogging
logic or return to the automatic defogging logic, do the following.
Automatic climate control system

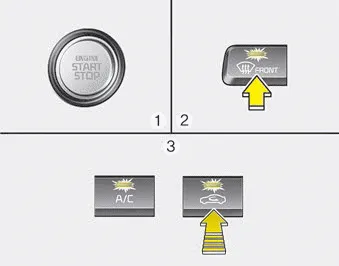

1. Turn the ignition switch to the ON position.
2. Press the defroster button (
).
3. While pressing the air conditioning button (A/C), press the air intake control button at least 5 times within 3 seconds.
The recirculation indicator blinks 3 times with 0.5 second of interval. It indicates that the defogging logic is canceled or returned to the programmed status.
If the battery has been discharged or disconnected, it resets to the defog logic status.
Auto defogging system ➤
