Kia Stinger CK: Windshield defrosting and defogging / Automatic climate control system

Contents:

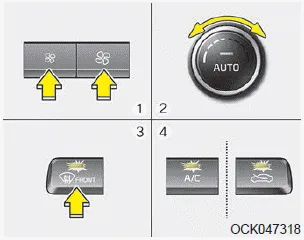

To defog inside windshield

1. Set the fan speed to the desired position.

2. Select desired temperature.

3. Press the defroster button ( ).

4. The outside (fresh) air position will be selected automatically and the air conditioning will turn on according to the detected ambient temperature.

If the air conditioning and outside (fresh) air position are not selected automatically, adjust the corresponding button manually. If the position is selected, lower fan speed is adjusted to a higher fan speed.

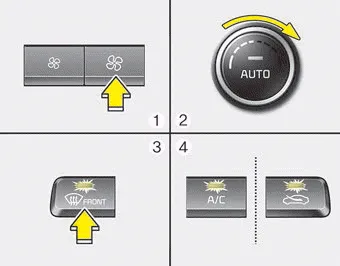

To defrost outside windshield

1. Set the fan speed to the highest position.

2. Set the temperature to the extreme hot (HI) position.

3. Press the defroster button ( ).

4. The outside (fresh) air position will be selected automatically and the air conditioning will turn on according to the detected ambient temperature.
