Kia Stinger CK: ECS(Electronic Control Suspension) System / ECS Control Unit
Kia Stinger (CK) 2018-2023 Service Manual / Suspension System / ECS(Electronic Control Suspension) System / ECS Control Unit
Repair procedures
| Removal |
| 1. |
Turn ignition switch OFF and disconnect the negative (-) battery cable. |
| 2. |
Remove the luggage side trim. (Refer to Body - "Luggage side trim") |
| 3. |

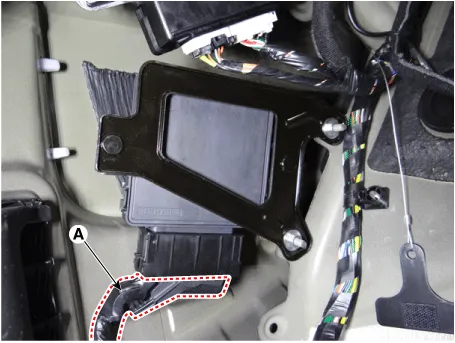

Disconnect the ECS control unit connector (A).
|
| 4. |

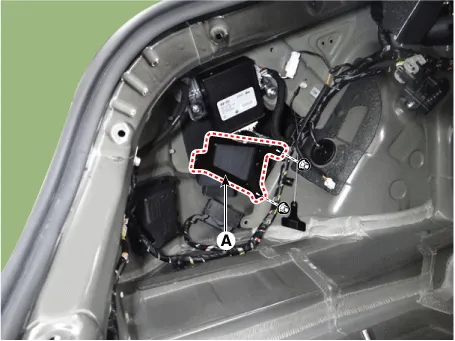

Loosen the ECS control unit bracket nut and then remove the ECS control unit (A).
|
| Installation |
| 1. |
Install in the reverse order of removal. |
| 2. |
Perform ECS variant coding. |
