Kia Stinger CK: Emergency Call System / Emergency Call (eCall) Button
Kia Stinger (CK) 2018-2023 Service Manual / Windshield Wiper/Washer / Emergency Call System / Emergency Call (eCall) Button
Components and components location
| Component |
Repair procedures
| Removal |
| 1. |
Disconnect the negative (-) battery terminal. |
| 2. |
Remove the overhead console lamp. (Refer to Lighting System - "Overhead Console Lamp") |
| 3. |
Disconnect the overhead console lamp connector (A).
|
| 4. |
Remove the overhead console lamp cover (A) after loosening the mounting screws.
|
| 5. |

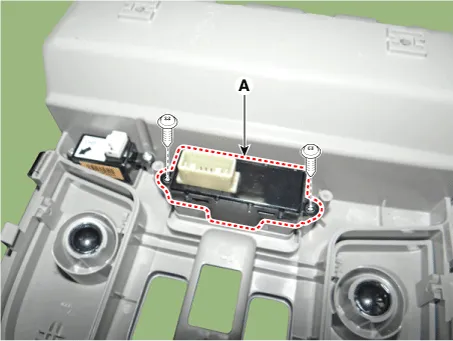

Remove the eCall button (A) after loosening the mounting screws.
|
| Installation |
| 1. |
Install the eCall button. |
| 2. |
Install the overhead console lamp cover. |
| 3. |
Connect the overhead console lamp connector. |
| 4. |
Install the overhead console lamp after connecting the connector. |
| 5. |
Connect the negative (-) battery terminal. |
