Kia Stinger CK: Engine And Transmission Assembly / Engine Room Under Cover

Kia Stinger (CK) 2018-2023 Service Manual / Engine Mechanical System / Engine And Transmission Assembly / Engine Room Under Cover

Repair procedures
Removal and Installation

Engine Room Front Under Cover.

1.

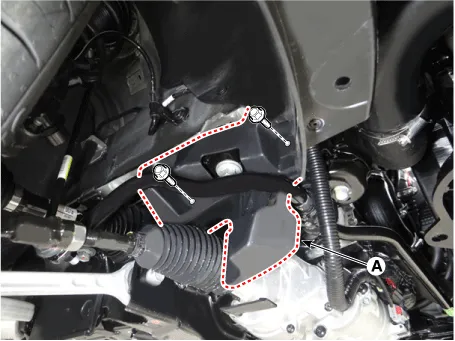

Remove the engine room front under cover (A).

Tightening torque :

7.8 - 11.8 N·m (0.8 - 1.2 kgf·m, 5.8 - 8.7 lb·ft)

2.

Install in the reverse order of removal.

Engine Room Rear Under Cover.

1.

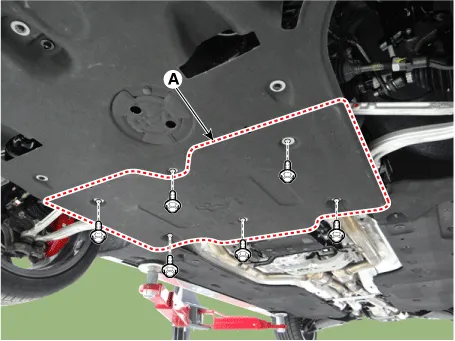

Remove the engine room rear under cover (A).

Tightening torque :

7.8 - 11.8 N·m (0.8 - 1.2 kgf·m, 5.8 - 8.7 lb·ft)

2.

Install in the reverse order of removal.

Engine Room Side Cover [AWD]

1.

Remove the engine room front under cover.
2.

Remove the engine room front side cover (A).

Tightening torque :

7.8 - 11.8 N·m (0.8 - 1.2 kgf·m, 5.8 - 8.7 lb·ft)

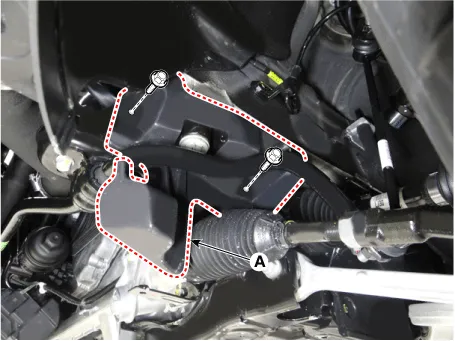

[RH]

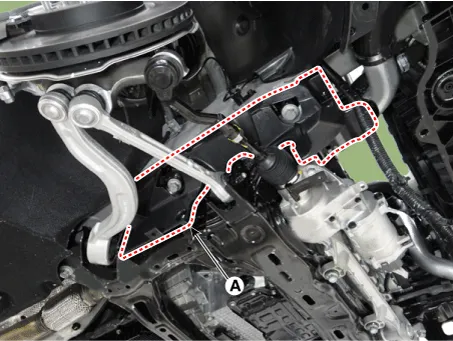

[LH]

3.

Remove the engine room rear side cover (A).

Tightening torque :

7.8 - 11.8 N·m (0.8 - 1.2 kgf·m, 5.8 - 8.7 lb·ft)

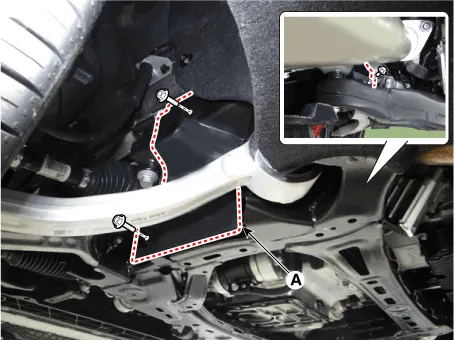

[RH]

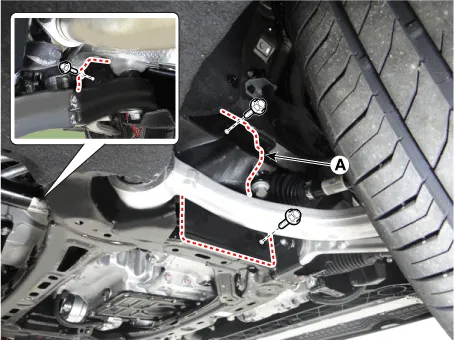

[LH]

4.

Install in the reverse order of removal.

Engine Room Side Cover [2WD]

1.

Remove the engine room front under cover.
2.

Remove the front stabilizer bar from the sub frame.

(Refer to Suspension System - "Front Stabilizer Bar")

3.

Remove the engine room side cover (A).

Tightening torque :

7.8 - 11.8 N·m (0.8 - 1.2 kgf·m, 5.8 - 8.7 lb·ft)

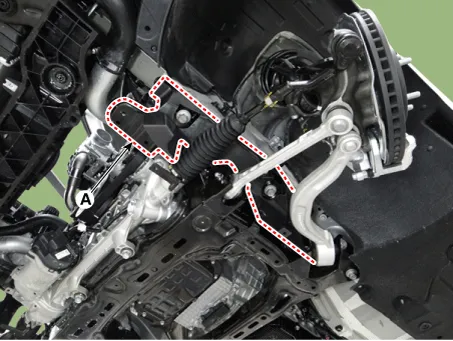

[RH]

[LH]

4.

Install in the reverse order of removal.
