Kia Stinger CK: Engine Mechanical System / Engine And Transmission Assembly

Kia Stinger (CK) 2018-2023 Service Manual / Engine Mechanical System / Engine And Transmission Assembly

Contents:

Engine Cover

Repair procedures
Removal and Installation
1.

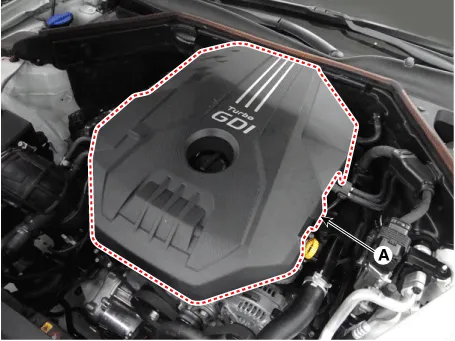

Remove the engine cover (A).


•

Lift up the lower end of engine cover, then left and right alternately.

•

When installing, check that the mounting rubber insulators are installed.

2.

Install in the reverse order of removal.

Engine Room Under Cover ➤

Engine Mounting ➤

Engine And Transmission Assembly ➤
