Kia Stinger CK: AVN System / Multimedia Jack

Kia Stinger (CK) 2018-2023 Service Manual / Body Electrical System / AVN System / Multimedia Jack

Schematic diagrams

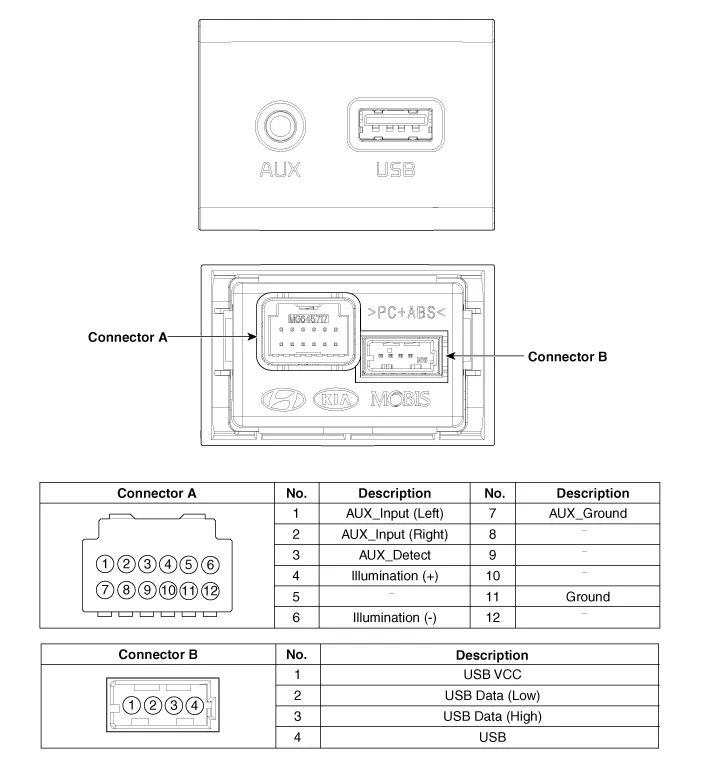

Circuit Diagram

Description and operation

Description

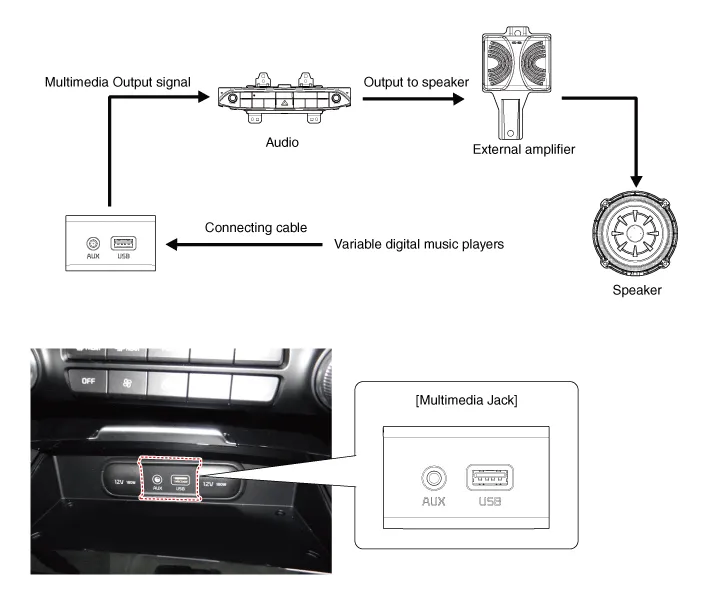

The multimedia jack on the console upper cover is for customers who like to listen to external portable music players like the MP3 etc., through the vehicle's sound system when it is linked to this jack. The customer has this added option.

In case of distorted sound coming from the AUX-linked external music players, the audio unit may not be defective but the output level of the player does not match the specification of the AUX.

Repair procedures

Removal

Multimedia Jack

Put on gloves to protect your hands.

•	When prying with a flat-tip screwdriver or use a prying trim tool, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.

•	Use a plastic panel removal tool to remove interior trim pieces to protect from marring the surface.

•	Take care not to bend or scratch the trim and panels.

1.	Disconnect the negative (-) battery terminal.

2.	Remove the console complete assembly. (Refer to Body - "Floor Console Assembly")

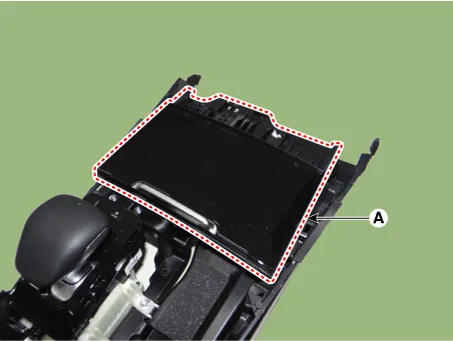

3.	Remove the front cover (A) after loosening the mounting screws.

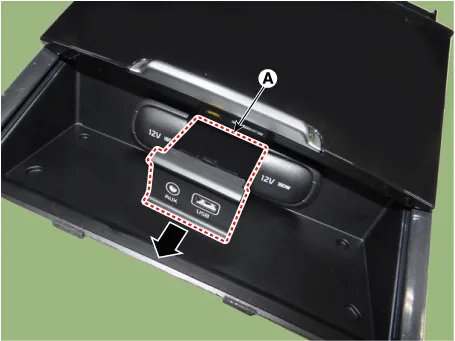

4.	Remove the floor console tray (A).

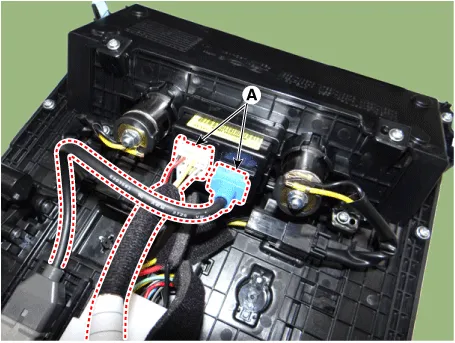

5.	Disconnect the multimedia jack connectors (A).

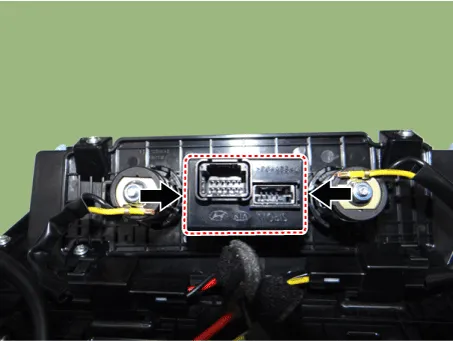

6.	Remove the multimedia jack (A) after releasing the fixed hooks.

USB Charger

1.	Disconnect the negative (-) battery terminal.

2.	Remove the rear console cover. (Refer to Body - "Rear Console Cover")

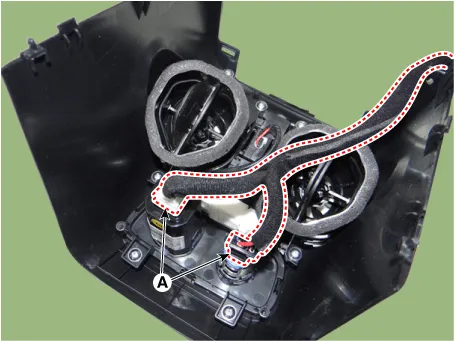

3.	Disconnect the USB charger connector (A).

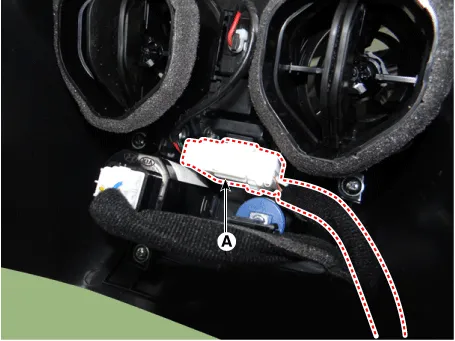

4.	Disconnect the rear heater & A/C control unit connector (A).

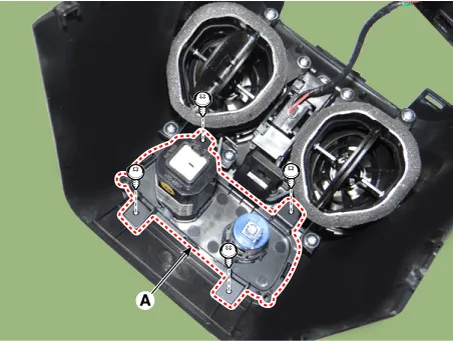

5.	Remove the USB charger (A) after loosening the mounting screws.

Installation

Multimedia Jack

1.	Install the multimedia jack.

2.	Connect the multimedia jack connector.

3.	Install the floor console tray.

4.	Install the front cover.

5.	Install the console complete assembly.

6.	Connect the negative (-) battery terminal.

USB Charger

1.	Install the USB charger.

2.	Connect the rear heater & A/C control unit connector.

3.	Connect the USB charger connector.

4.	Install the rear console cover.

5.	Connect the negative (-) battery terminal.
