Kia Stinger CK: ESP(Electronic Stability Program) System / ESP OFF Switch
Description and operation
| Description |
| 1. |

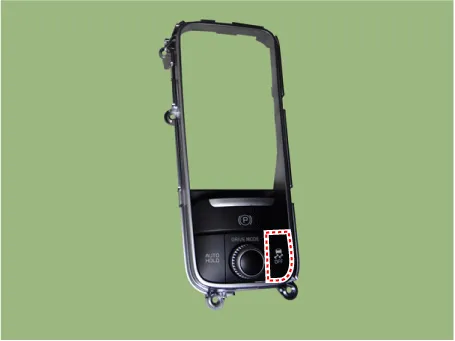

The ESP OFF switch is for the user to turn off the ESP system. |
| 2. |
The ESP OFF lamp is on when ESP OFF switch is engaged. |
Repair procedures
| Removal |
| 1. |
Turn ignition switch OFF and disconnect the negative (-) battery cable. |
| 2. |

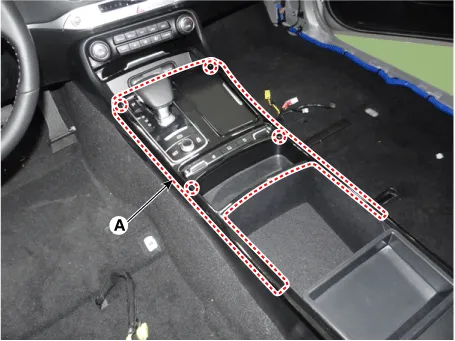

Using the remover, remove the console upper cover (A).
|
| 3. |

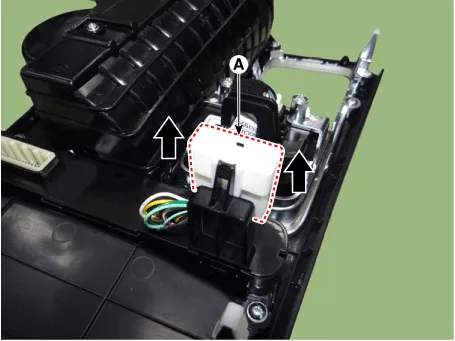

Disconnect the connector (A) from the console upper complete.
|
| 4. |
Disconnect the connector (A) from the upper console.
|
| 5. |
Loosen the screw and then remove the console floor switch complete (A).
|
| 6. |
Remove the cup holder (A).
|
| 7. |
Loosen the screw and then remove the ESP switch (A).
|
| 8. |
Disconnec the ESP connector (A) from the upper console.
|
| 9. |
Install in the reverse order of removal. |
