Description and operation

Description

•	The front impact sensor (FIS) is installed in the Front End Module (FEM).

•	FIS is a remote sensor that detects acceleration due to a collision at its mounting location.

•	The primary purpose of the Front Impact Sensor (FIS) is to provide an indication of a collision. The Front Impact Sensor (FIS) sends acceleration data to the SRSCM.

Components and components location

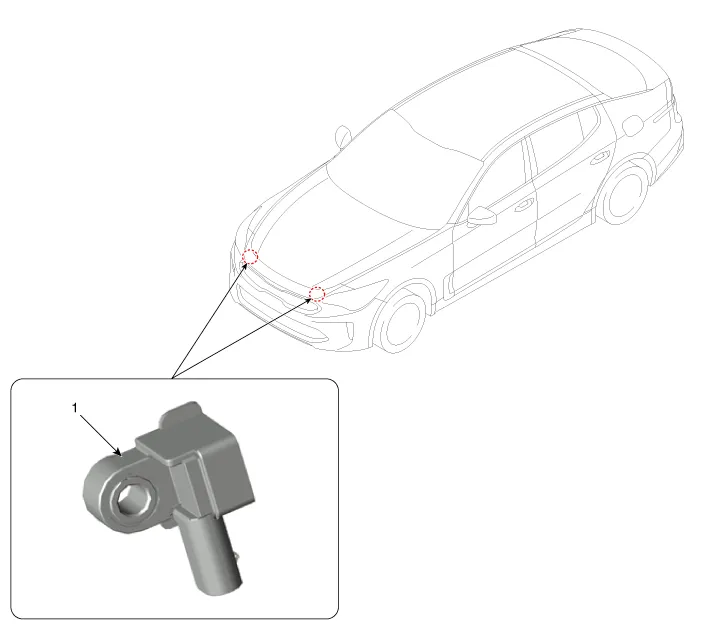

Components

1. Front Impact Sensor (FIS)

Repair procedures

Removal

1.	Disconnect the negative battery cable and wait for at least thirty seconds before beginning to work.

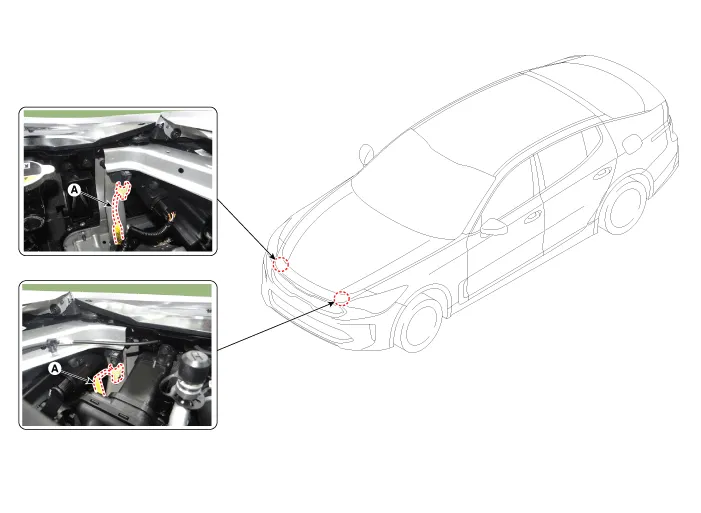

2.	Disconnect the front impact sensor connector (A).

3.	Remove the front impact sensor mounting bolt (A).

Installation

Do not switch "ON" the ignition or connect the battery terminal while replacing the front impact sensor.

1.	Install the new front impact sensor.

Tighten the front impact sensor mounting bolt.

Tightening torque :

7.8 - 11.7 N·m (0.8 - 1.2 kgf·m . 5.7 - 8.6 lb·ft)

3.	Connect the front impact sensor.

4.	4. Reconnect the negative battery terminal.

5.	After installing the Front Impact Sensor, confirm proper system operation: • Switch "ON" the ignition. The SRS indicator light should turn on for about six seconds and then off.
