Kia Stinger CK: Automatic Transmission System / Hydraulic System
Kia Stinger (CK) 2018-2023 Service Manual / Automatic Transmission System / Hydraulic System
Contents:
- Fluid
- Oil Filter
- Oil Pump Unit (OPU)
- Electronic Oil Pump (EOP)
- Oil Cooler
- Valve Body
- 8LR Brake Control Solenoid Valve (8LR/B_VFS)
- 6 Clutch Control Solenoid Valve (6/C_VFS)
- 27 Brake Control Solenoid Valve (27/B_VFS)
- 35R Clutch Control Solenoid Valve (35R/C_VFS)
- 4&OD Clutch Control Solenoid Valve (4&OD/C_VFS)
- UD Clutch Control Soleoind Valve (UD/C_VFS)
- Line Pressure Control Solenoid Valve (LINE_VFS)
- Damper Clutch Control Solenoid Valve (D/C_VFS)
- P Position Solenoid Valve (ON/OFF)
- D Position Solenoid Valve (ON/OFF)
- R Position Solenoid Valve (ON/OFF)
- SS-A Solenoid Valve (ON/OFF)
- ATF Warmer
Oil pressure characteristics input
| Oil-pressure characteristics input |
| Solenoid valve oil-pressure characteristics input procedure |
| 1. |

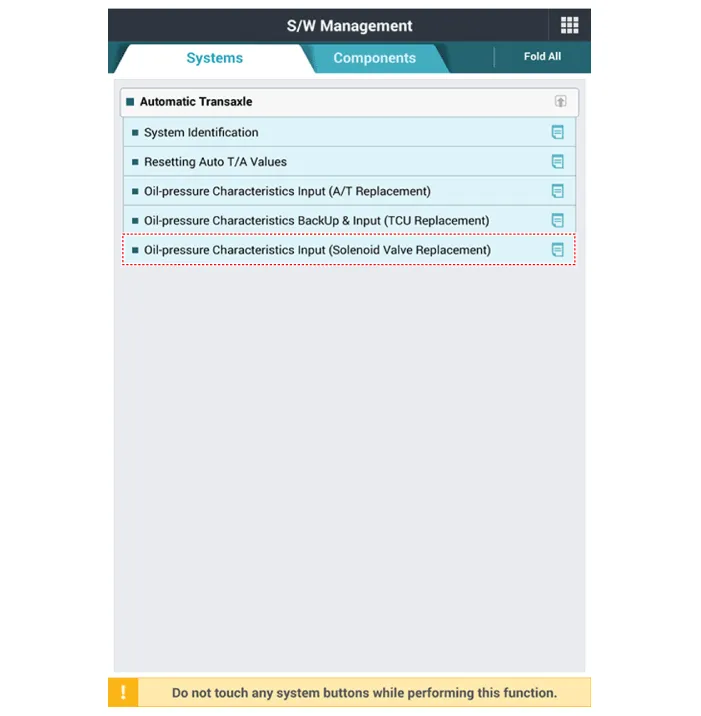

Perform the oil-pressure characteristics input procedure using the KDS.
|
| 2. |

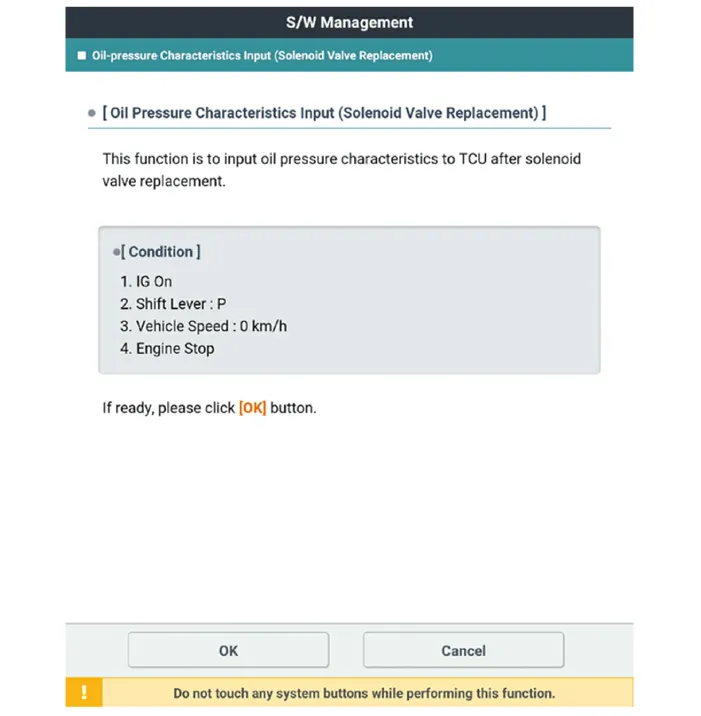

Click the "OK" button after checking the condition.
|
| 3. |

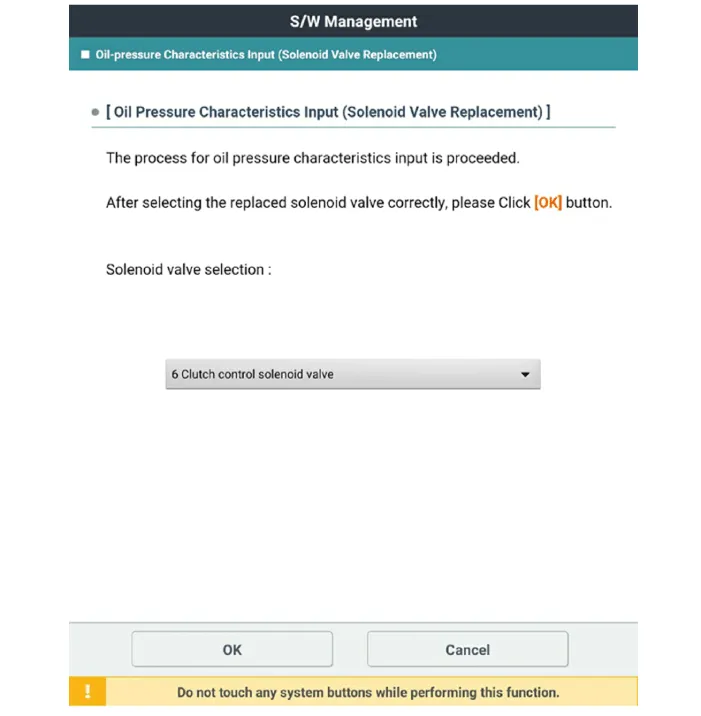

Click the "OK" button after selecting the replaced solenoid valve.
|
| 4. |

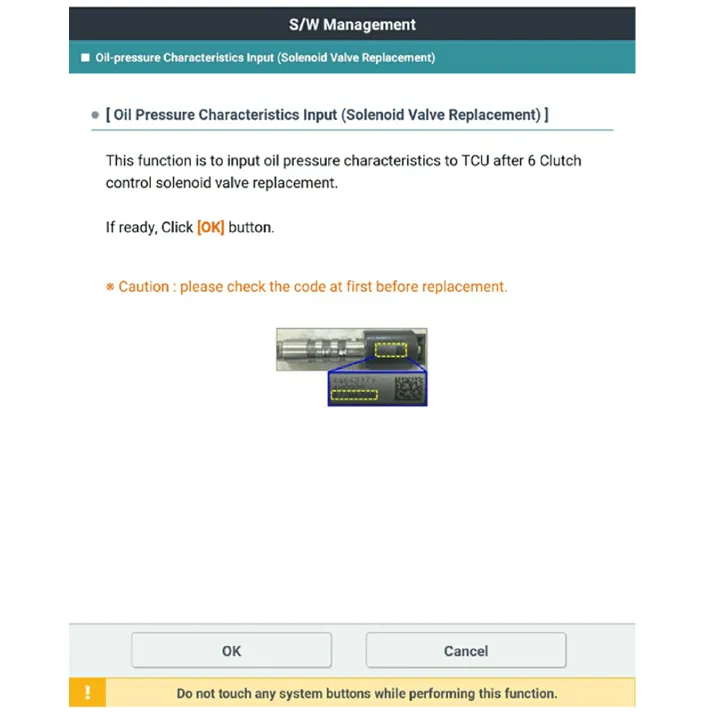

Check the code that was recorded before installing the new solenoid valve.
|
| 5. |

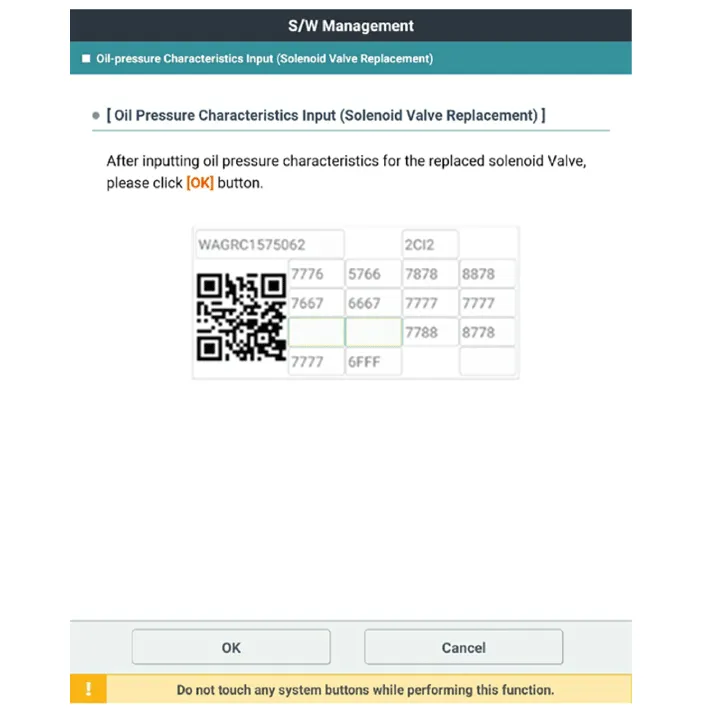

Click the "OK" button after inputting oil pressure characteristics for the replaced solenoid valve.
|
