Kia Stinger CK: Hydraulic System / Valve Body

Kia Stinger (CK) 2018-2023 Service Manual / Automatic Transmission System / Hydraulic System / Valve Body

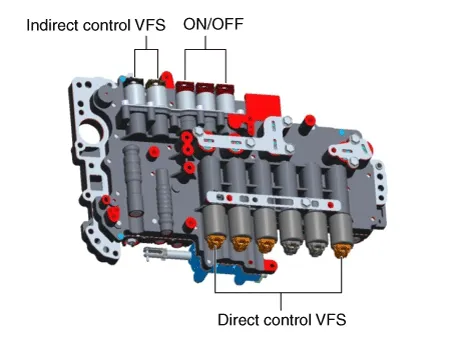

Components and components location

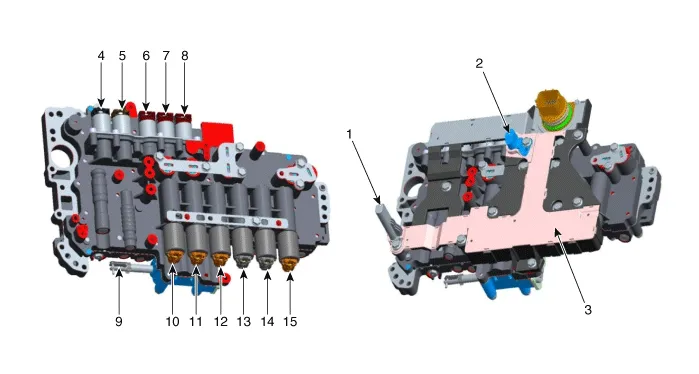

Components

1. Input speed sensor
2. Output speed sensor
3. E-Module
4. Line pressure control solenoid valve
5. Damper clutch control solenoid valve
6. P position ON/OFF Solenoid valve
7. D position ON/OFF Solenoid valve
8. R position ON/OFF Solenoid valve

9. Parking release pistion
10. 8LR/B control solenoid valve
11. 6/C control solenoid valve
12. 27/B control solenoid valve
13. 35R/C control solenoid valve
14. 4&OD/C control solenoid valve
15. UD/C control solenoid valve

Description and operation

Description

The valve body is essential to automatic transmission control and consists of various valves used to control the oil feed from the oil pump.

Repair procedures

Replacement

It is not recommended to replace the valve body. If the valve body needs to be replaced, the automatic transmission assembly should be replaced and the oil pressure characteristics should be input using the KDS. If replacing the valve body, it is not possible to input the oil pressure characteristics using the KDS and if not performing the oil pressure characteristics input procedure, a shift shock or delay may occur.

1.	Replace the automatic transmission assembly. (Refer to Automatic Transmission System - "Automatic Transmission System")

Oil Cooler

8LR Brake Control Solenoid Valve (8LR/B_VFS)
