Kia Stinger CK: Front Seat / Front Seat Outer Shield Cover

Kia Stinger (CK) 2018-2023 Service Manual / Body (Interior and Exterior) / Front Seat / Front Seat Outer Shield Cover

Components and components location

Component Location

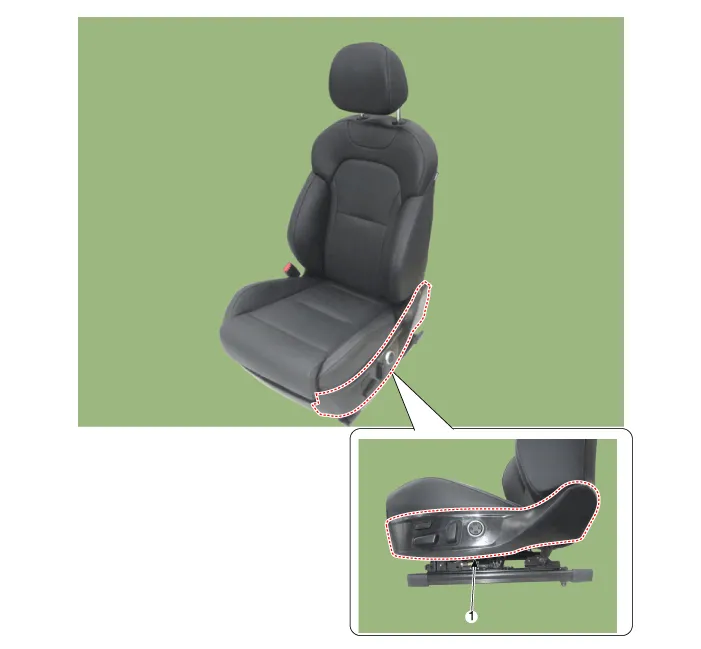

1. Front seat outer shield cover

Repair procedures

Replacement

Put on gloves to protect your hands.

•	Use a plastic panel removal tool to remove interior trim pieces without marring the surface.

•	Take care not to bend or scratch the trim and panels.

1.	Remove the front seat forward extension cover (A).

Remove the front seat outer shield cover (A) by using a remover.

Be careful not to damage the mounting bracket and hook when removing the cover..

3.	Disconnect the front seat power switch connector (A).

Install in the reverse order of removal.

Make sure that the connectors are plugged in properly.
