Kia Stinger CK: Front Seat / Front Seat Inner Shield Cover

Kia Stinger (CK) 2018-2023 Service Manual / Body (Interior and Exterior) / Front Seat / Front Seat Inner Shield Cover

Components and components location

Component Location

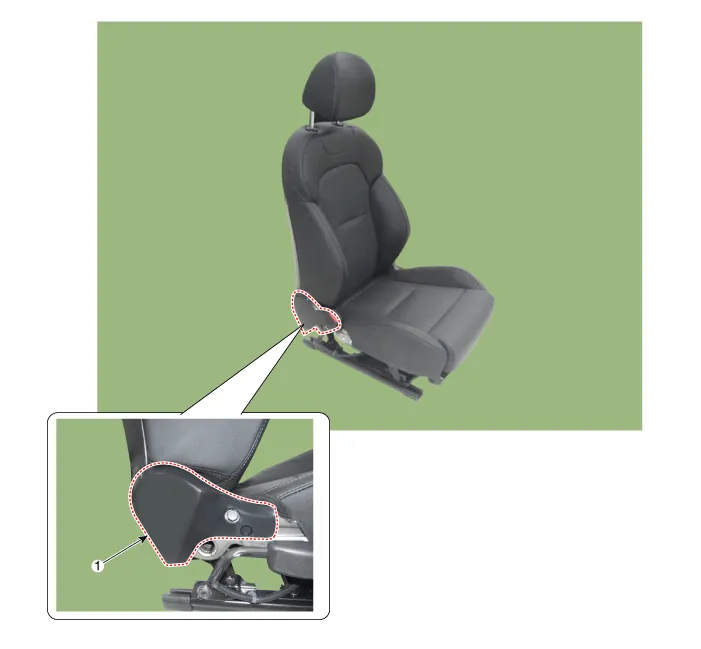

1. Front Seat Inner Shield Cover

Repair procedures

Replacement

Put on gloves to protect your hands.

•	Use a plastic panel removal tool to remove interior trim pieces without marring the surface.

•	Take care not to bend or scratch the trim and panels.

1.	Remove the front seat assembly. (Refer to Front Seat - "Front Seat Assembly")

2.	Remove the front seat shield inner cover (A) after loosening the mounting screw.

Install in the reverse order of removal.

Replace any damage clips.
