Kia Stinger CK: Body (Interior and Exterior) / Front Seat

Kia Stinger (CK) 2018-2023 Service Manual / Body (Interior and Exterior) / Front Seat

Contents:

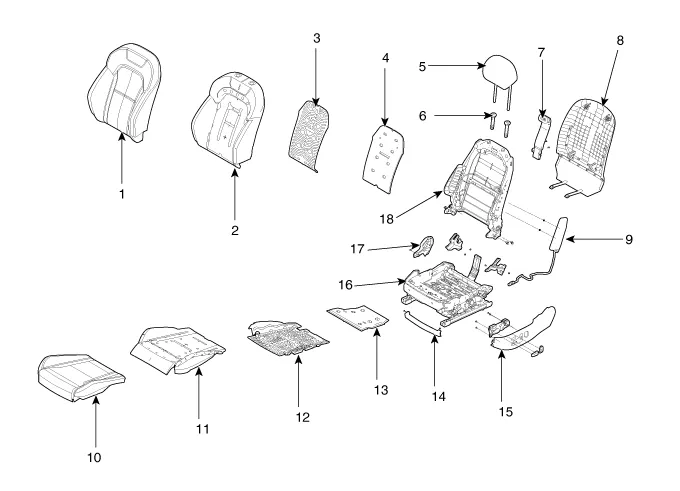

Components and components location
Components

1. Front seat back covering
2. Front seat back pad
3. Front seat back heater
4. Front seat back ventilation mat
5. Front seat headrest
6. Front seat headrest guide
7. Front seat back air duct
8. Front seat back board
9. Front seat SAB module
10. Front seat cushion covering
11. Front seat cushion pad
12. Front seat cushion heater
13. Front seat cushion air ventilation mat
14. Front seat shield center cover
15. Front seat shield outer cover
16. Front seat cushion frame
17. Front seat shield inner cover
18. Front seat back frame

Front Seat Assembly ➤

Front Seat Outer Shield Cover ➤

Front Seat Inner Shield Cover ➤

Front Seat Back Cover ➤

Front Seat Cushion Cover ➤

Front Seat Frame Assembly ➤

Front Door Latch

Front Seat Assembly
