Kia Stinger CK: Hydraulic System / Electronic Oil Pump (EOP)

Kia Stinger (CK) 2018-2023 Service Manual / Automatic Transmission System / Hydraulic System / Electronic Oil Pump (EOP)

Components and components location

Components Location

1. Electric Oil Pump (EOP)

Schematic diagrams

Circuit Diagram

Repair procedures

Removal

1.	Remove the under cover. (Refer to Engine Mechanical System - "Engine Room Under Cover")

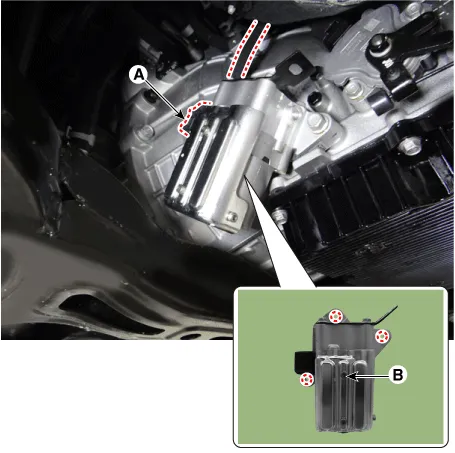

Disconnect the EOP connector (A) and remove the EOP (B) by loosening the bolts.

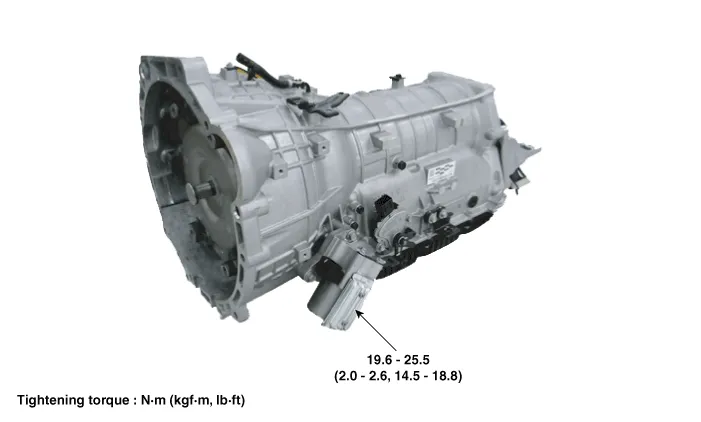

Tightening torque :

19.6 - 25.5 N·m (2.0 - 2.6 kgf·m, 14.5 - 18.8 lb·ft)

Installation

Install in the reverse order of removal.

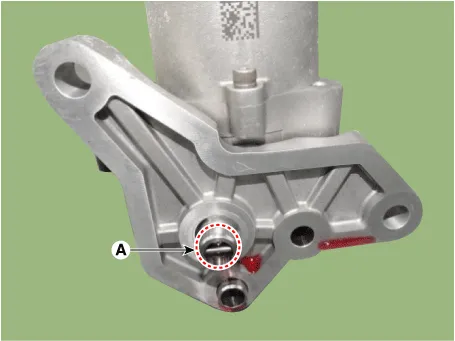

•	Check the assembled state of o-ring (A) and pipe seal (B) before reinstalling the EOP.

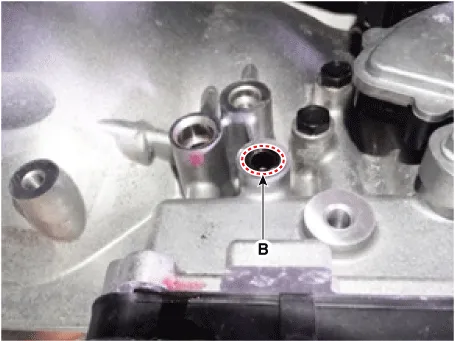

•	When replacing the EOP, the existing pipe seal (B) must be replaced with a new one.

2.	Refill the automatic transmission with fluid. (Refer to Hydraulic System - "Fluid")
