Kia Stinger CK: Headlamp Leveling System / Headlamp Leveling Actuator
Kia Stinger (CK) 2018-2023 Service Manual / Body Electrical System / Headlamp Leveling System / Headlamp Leveling Actuator

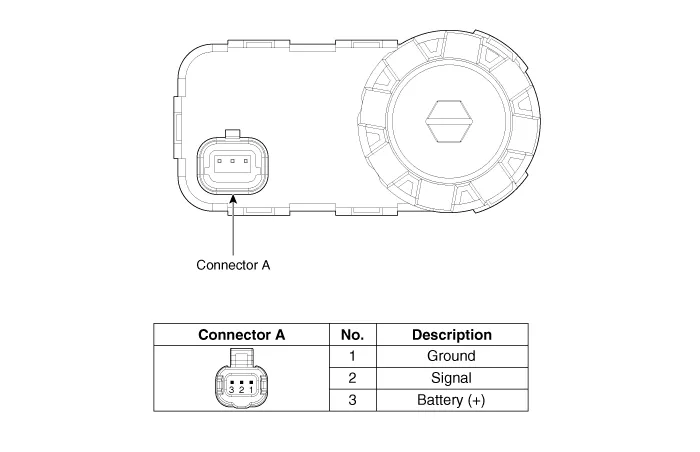

Components and components location
| Circuit Diagram |
Repair procedures
| Removal |
| 1. |
Disconnect the negative (-) battery terminal. |
| 2. |
Remove the headlamp assembly. (Refer to Lighting System - "Headlamps") |
| Installation |
| 1. |
Install the headlamp assembly. |
| 2. |
Connect the negative (-) battery terminal. |
| 3. |
Adjust the headlamp in accordance with the headlamp aiming instructions. |
