Kia Stinger CK: Body Electrical System / Headlamp Leveling System

Contents:

Components and components location

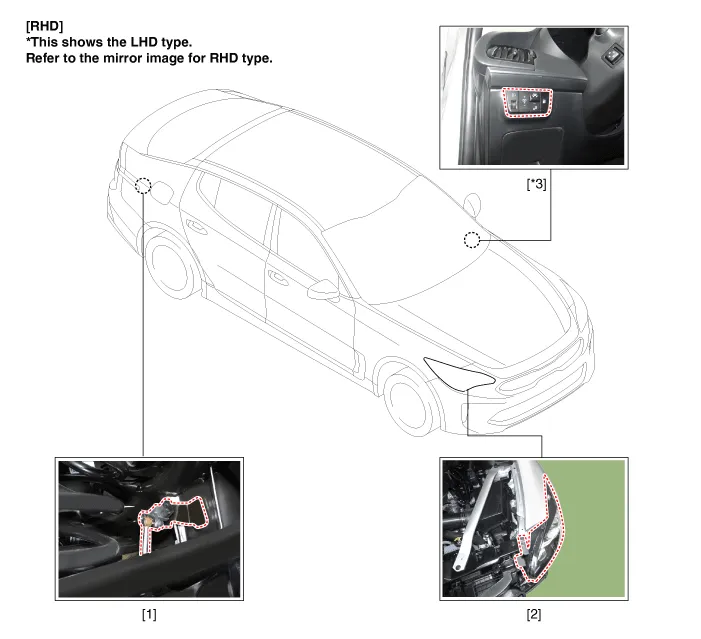

Component Location

1. Headlamp leveling unit (Auto)
2. Headlamp leveling actuator (Built in leveling actuator)
3. Headlamp leveling switch (Manual)

Headlamp Leveling Actuator ➤

Headlamp Leveling Switch (Manual) ➤

Headlamp Leveling Unit ➤
