Kia Stinger CK: Maintenance / Light bulbs
Contents:
Bulb replacement precaution ➤
Light bulb position (Front)

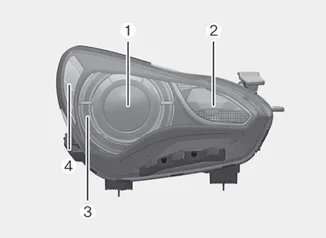

■ Head lamp - Type A

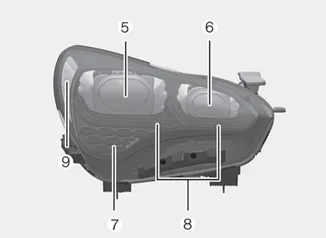

■ Head lamp - Type B
(1) Headlamp (Low/High) (bulb type)
(2) Front turn signal lamp (bulb type)
(3) Day time running lamp / Position lamp (LED type)
(4) Side marker (bulb type)
(5) Headlamp (Low/High) (LED type)
(6) Headlamp (Low/High assist) (LED type)
(7) Front turn signal lamp (LED type)
(8) Day time running lamp / Position lamp (LED type)
(9) Side marker (LED type)
Light bulb position (Rear)
■ Rear combination lamp - Type A
■ Rear combination lamp - Type B

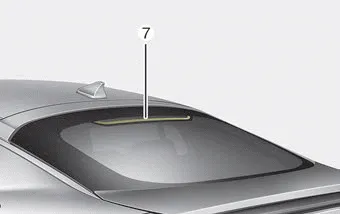

■ High mounted stop lamp
■ License plate lamp
(1) Stop and tail lamp (LED type)
(2) Stop lamp (LED type)
(3) Back-up lamp (bulb type)
(4) Rear turn signal lamp (bulb type)
(5) Side marker (LED type)
(6) Rear turn signal lamp (LED type)
(7) High mounted stop lamp (LED type)
(8) License plate lamp (LED type)
