Kia Stinger CK: Fuses / Fuse/relay panel description

Kia Stinger (CK) 2018-2023 Owner's Manual / Maintenance / Fuses / Fuse/relay panel description

Contents:

Driver’s side fuse panel
Engine compartment fuse panel
Rear fuse box panel
Battery box fuse panel

■ Driver’s side fuse panel

■ Engine compartment fuse panel

■ Rear fuse box panel

■ Battery box fuse panel

Inside the fuse/relay panel covers, you can find the fuse/relay label describing fuse/relay name and capacity.

✽ NOTICE

Not all fuse panel descriptions in this manual may be applicable to your vehicle. It is accurate at the time of printing. When you inspect the fuse panel in your vehicle, refer to the fuse panel label.

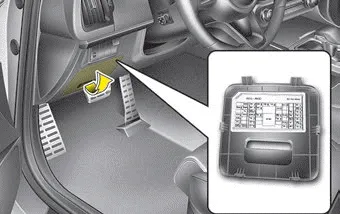

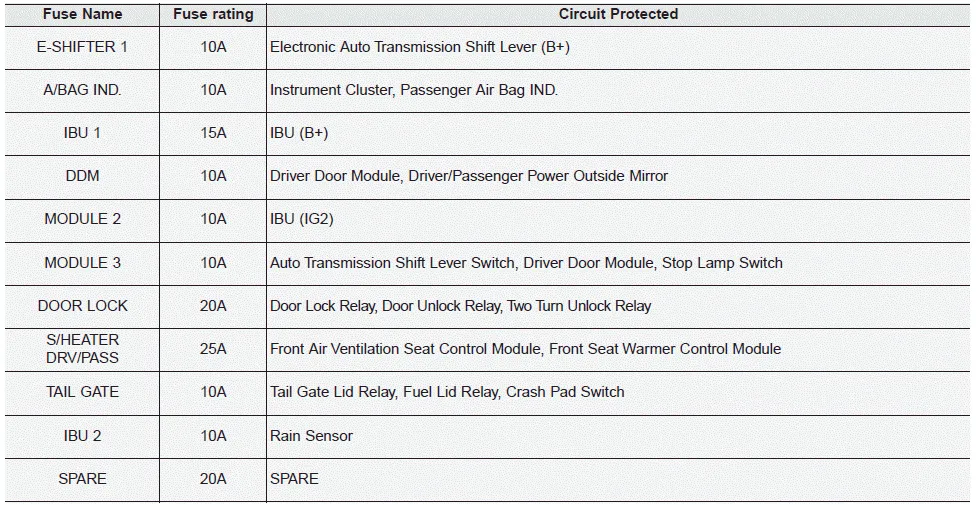

Driver’s side fuse panel

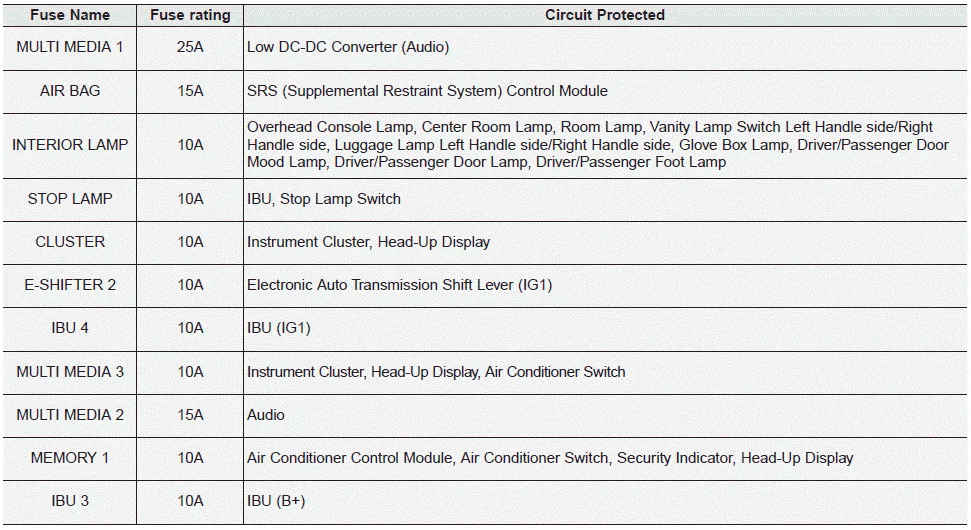

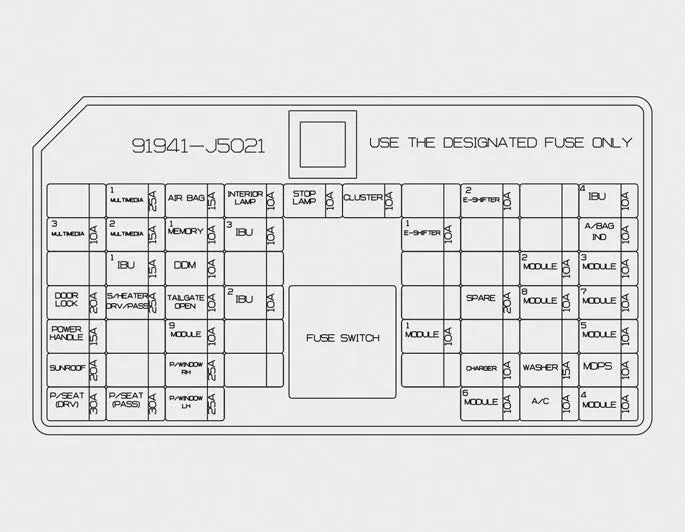

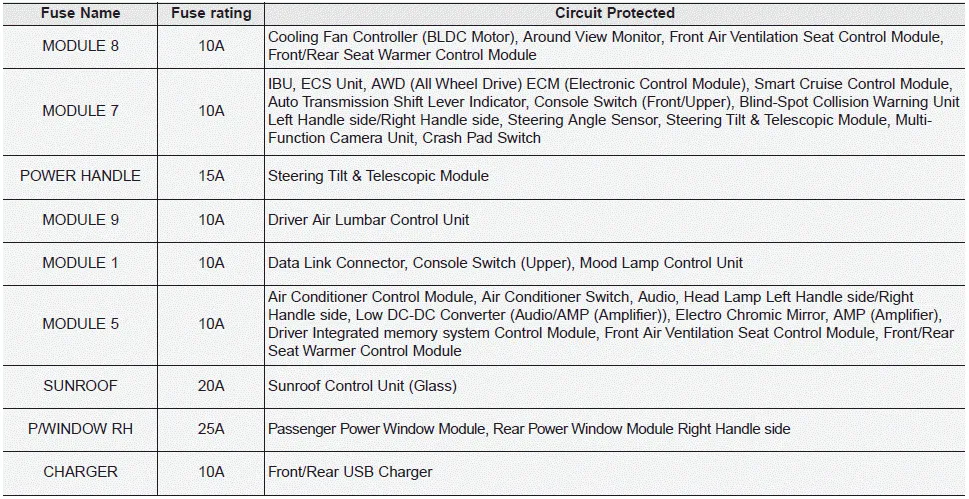

Instrument panel (Driver’s side fuse panel)

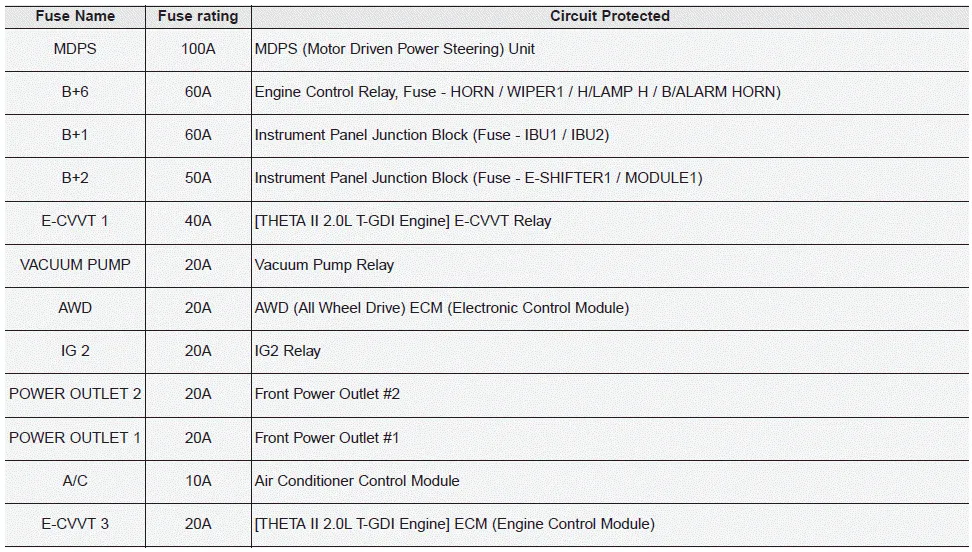

Engine compartment fuse panel

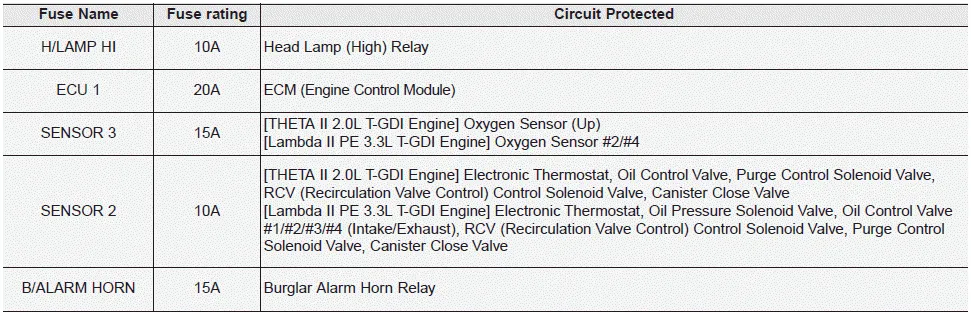

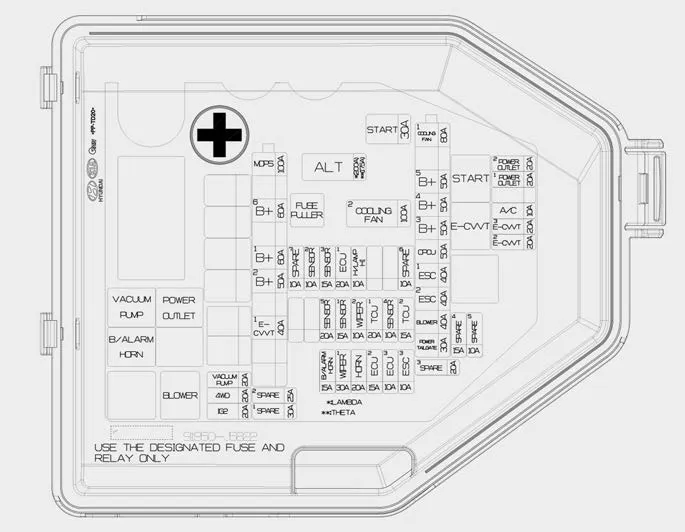

Engine room compartment fuse panel

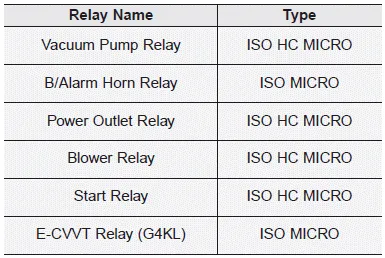

Relay

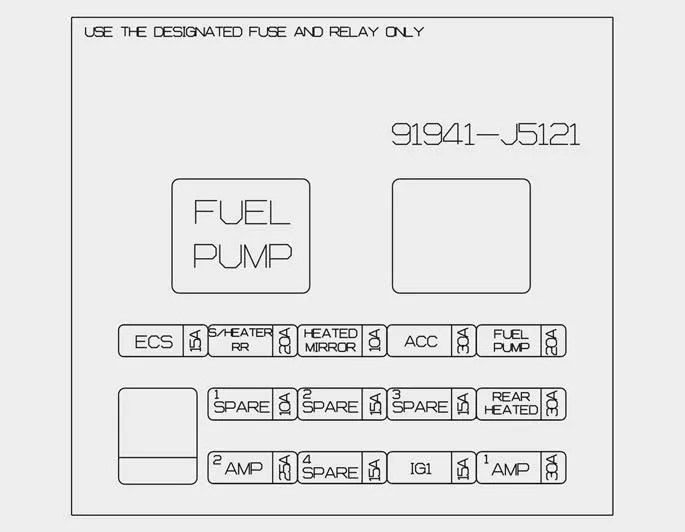

Rear fuse box panel

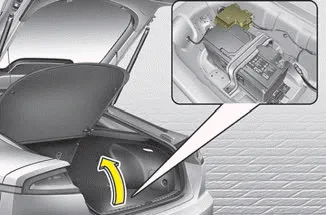

Rear fuse box panel

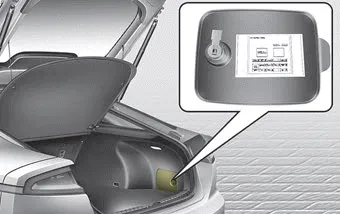

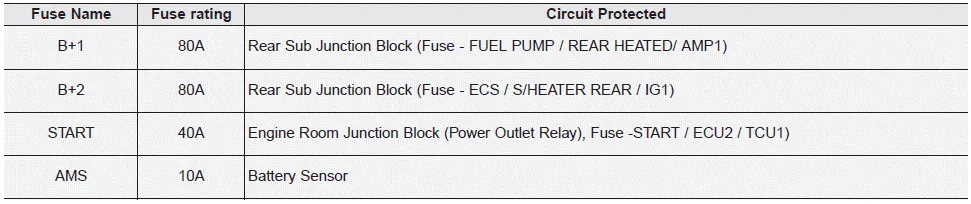

Battery box fuse panel

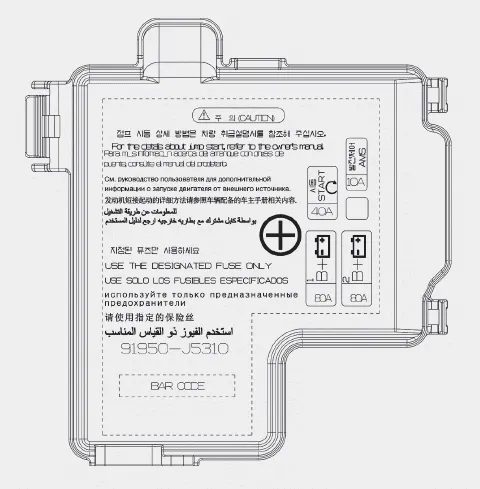

Battery box fuse panel
