Kia Stinger CK: Body Electrical System / Wide Sunroof

Kia Stinger (CK) 2018-2023 Service Manual / Body Electrical System / Wide Sunroof

Contents:

Components and components location

Component Location

1. Wide sunroof
2. Wide sunroof switch

3. Roller blind motor & slave controller
4. Glass motor & controller

Schematic diagrams

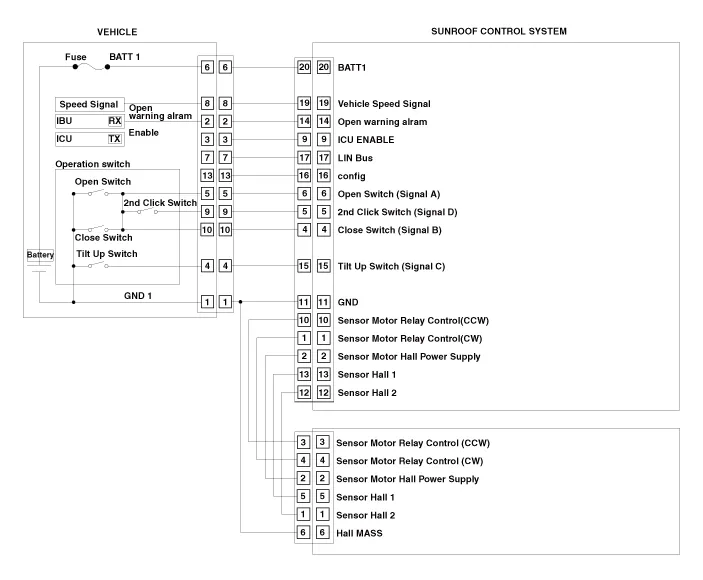

Circuit Diagram

No.	Sunroof wiring connector (Vehicle side)	Glass motor (Master)	Blind motor (Slave)
No.
1	Ground 1	Sensor motor relay control (CCW)	Sensor motor relay control (CCW)
2	Open warning alram	ICU Enable	Sensor motor relay control (CW)
3	ICU Enable	-	Sensor hall 1
4	Tilt up switch	-	Sensor mass
5	Open swtich	Open switch	Sensor hall 2
6	Battery 1	2nd click switch	Sensor motor hall power supply
7	-	Close switch
8	Vehicle speed signal	-
9	2nd click switch	Sensor motor hall power supply
10	Close click switch	Sensor moter relay control (CW)
11	-	Battery
12	-	Vehicle speed signal
13	-	-
14	-	LIN Bus
15		Config
16		Tilt up switch
17		Open warning alram
18		Sensor hall 1
19		Sensor hall 2
20		Ground
