Kia Stinger CK: Parking Distance Warning (PDW) / Parking Distance Warning (PDW) Sensor

Kia Stinger (CK) 2018-2023 Service Manual / Body Electrical System / Parking Distance Warning (PDW) / Parking Distance Warning (PDW) Sensor

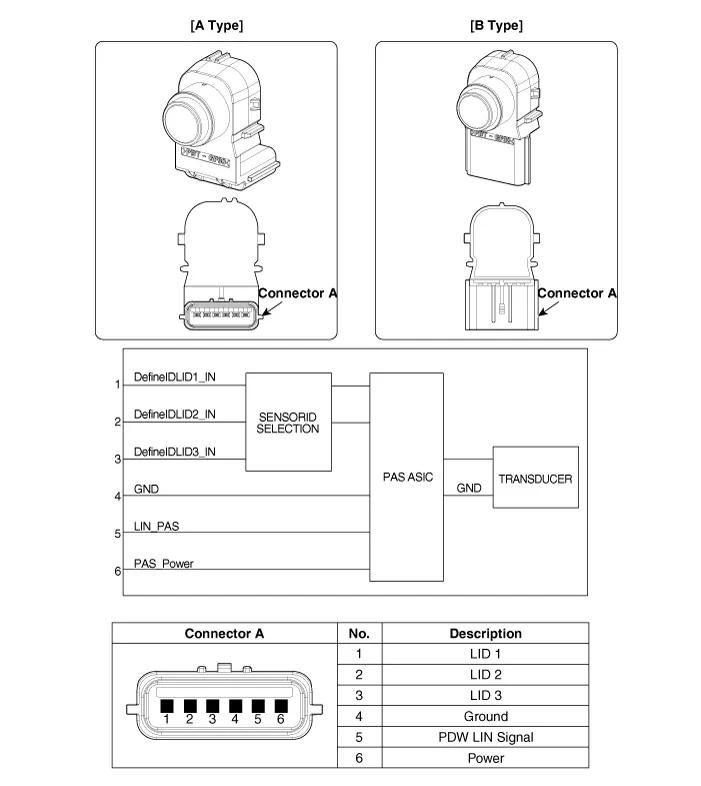

Components and components location

Components

Repair procedures

Removal

Parking Distance Warning-Forward (PDW-F) Sensor

1.	Disconnect the negative (-) battery terminal.

2.	Remove the front bumper assembly. (Refer to Body - "Front Bumper Assembly")

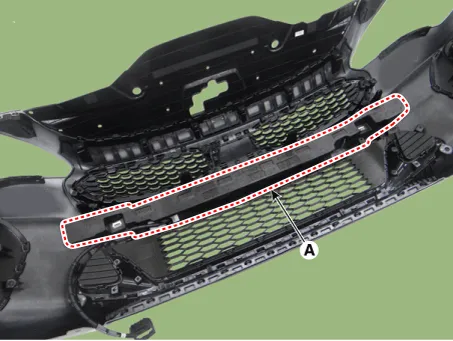

3.	Remove the front bumper energy absorber (A).

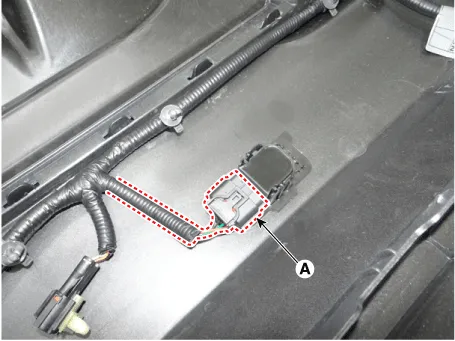

4.	Disconnect the connector (A) from the PDW-F sensor. [A Type] [B Type]

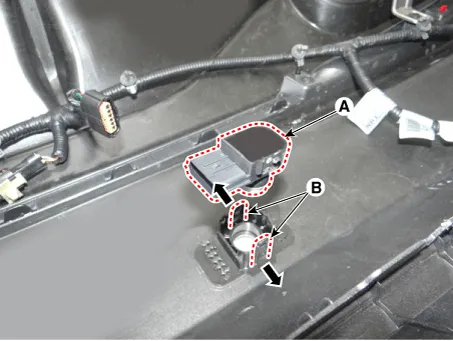

5.	Pull out ths PDW-F sensor (A) after opening the sensor holder (B). [A Type] [B Type]

Parking Distance Warning-Reverse (PDW-R) Sensor

1.	Disconnect the negative (-) battery terminal.

2.	Remove the rear bumper beam assembly. (Refer to Body - "Rear Bumper Beam Assembly")

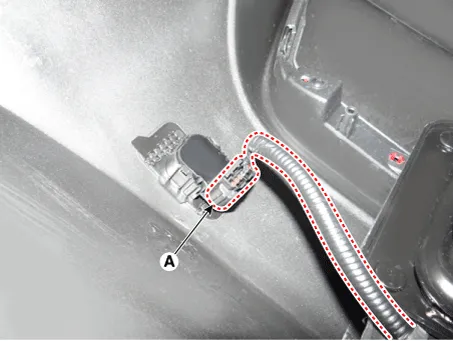

3.	Disconnect the connector (A) from the PDW-R sensor. [A Type] [B Type]

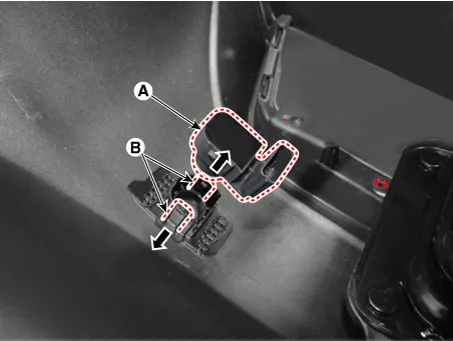

4.	Pull out ths PDW-R sensor (A) after opening the sensor holder (B). [A Type] [B Type]

Installation

Parking Distance Warning-Forward (PDW-F) Sensor

1.	Install the PDW-F sensor after connecting the connector.

2.	Install the front bumper energy absorber.

3.	Install the front bumper assembly.

4.	Connect the negative (-) battery terminal.

Parking Distance Warning-Reverse (PDW-R) Sensor

1.	Install the PDW-R sensor after connecting the connector.

2.	Install the rear bumper beam assembly.

3.	Connect the negative (-) battery terminal.

Parking Distance Warning (PDW)

Parking Distance Warning (PDW) Switch
