Kia Stinger CK: Body Side Molding / Roof Side Molding

Kia Stinger (CK) 2018-2023 Service Manual / Body (Interior and Exterior) / Body Side Molding / Roof Side Molding

Repair procedures

Replacement

Put on gloves to protect your hands.

•	Use a plastic panel removal tool to remove interior trim pieces without marring the surface.

•	Take care not to bend or scratch the trim and panels.

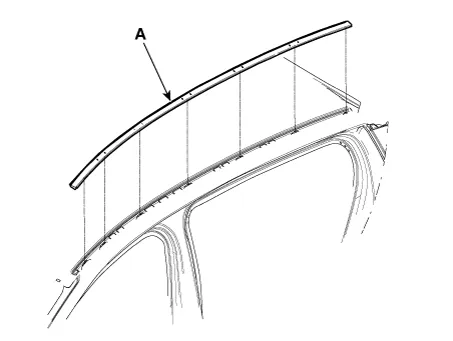

Using a remover, remove the roof side molding (A).

Always replace the roof side molding with a new one.

Install in the reverse order of removal.

Replace any damaged clips.
