Kia Stinger CK: Lighting System / License Lamps
Kia Stinger (CK) 2018-2023 Service Manual / Body Electrical System / Lighting System / License Lamps
Repair procedures
| Removal |
| 1. |
Disconnect the negative (-) battery terminal. |
| 2. |
Remove the tailgate back panel. (Refer to Body - "Tailgate Back Panel") |
| 3. |

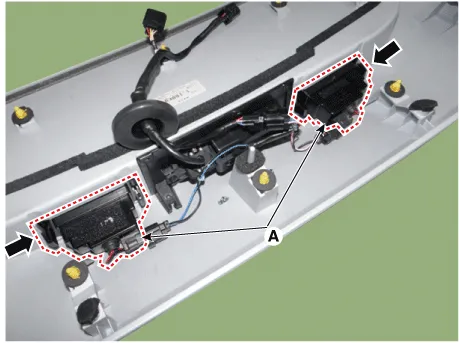

Disconnect the license lamp connectors (A).
|
| 4. |
Remove the license lamp (A) after pressing the locking pin.
|
| Installation |
| 1. |
Install the license lamp. |
| 2. |
Connect the license lamp connector. |
| 3. |
Install the tailgate back panel. |
| 4. |
Connect the negative (-) battery terminal. |
