Kia Stinger CK: Body Electrical System / Lighting System
Kia Stinger (CK) 2018-2023 Service Manual / Body Electrical System / Lighting System
Contents:
- Headlamps
- Turn Signal Lamp
- Room Lamp
- Luggage Room Lamp
- Vanity Lamp
- Overhead Console Lamp
- Rheostat
- License Lamps
- High Mounted Stop Lamp
- Rear Combination Lamp
Specifications
| Specification |
|
Item |
Type |
Bulb Watt (W) |
|||
|
Front |
Headlamp |
Halogen type |
Low/High |
HB3 HL+ |
60 |
|
Front turn signal lamp |
PY21W LL |
21 |
|||
|
DRL / Position lamp |
LED |
LED |
|||
|
LED type |
Low/High |
LED |
LED |
||
|
Front turn signal lamp |
LED |
LED |
|||
|
DRL / Position lamp |
LED |
LED |
|||
|
Side repeater lamp (Outside mirror) |
LED |
LED |
|||
|
Rear |
Rear combinationlamp |
LED A type |
Tail lamp |
LED |
LED |
|
Tail / Stop lamp |
LED |
LED |
|||
|
Turn signal lamp |
PY21W |
21 |
|||
|
Back up lamp |
W16W |
16 |
|||
|
Rear fog lamp |
LED |
LED |
|||
|
LED B type |
Tail lamp |
LED |
LED |
||
|
Tail / Stop lamp |
LED |
LED |
|||
|
Turn signal lamp |
LED |
LED |
|||
|
Back up lamp (Only B type) |
W16W |
16 |
|||
|
High mounted stop lamp |
LED |
LED |
|||
|
License plate lamp |
LED |
LED |
|||
|
Interior |
Map lamp |
LED |
LED |
||
|
Room lamp |
LED |
LED |
|||
|
Personal lamp |
LED |
LED |
|||
|
Luggage lamp |
LED |
LED |
|||
|
Glove box lamp |
FESTOON |
5 |
|||
|
Foot lamp |
FESTOON |
5 |
|||
Components and components location
| Component Location |

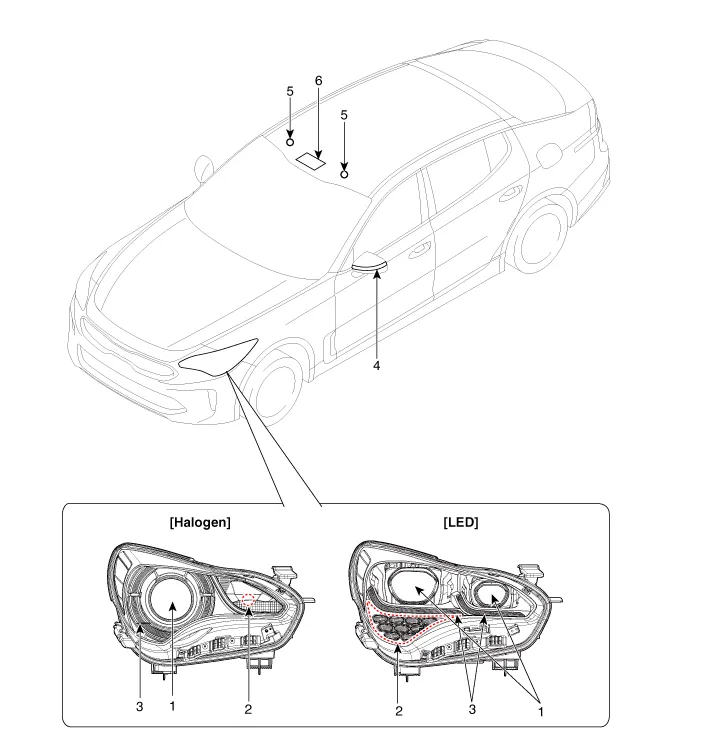

| 1. Headlamp (Low/High) 2. Turn signal lamp 3. Daytime Running Light (DRL) / Position lamp |
4. Turn signal lamp (Door mirror
/ Side) 5. Vanity lamp 6. Map lamp |
| 1 .Stop / Tail lamp 2. Stop lamp 3. Back up lamp 4.Turn signal lamp |
5. Rear fog lamp 6. License lamp 7. High mounted stop lamp 8. Room lamp |
