Kia Stinger CK: Lighting System / Vanity Lamp
Repair procedures
| Removal |
| 1. |
Disconnect the negative (-) battery terminal. |
| 2. |

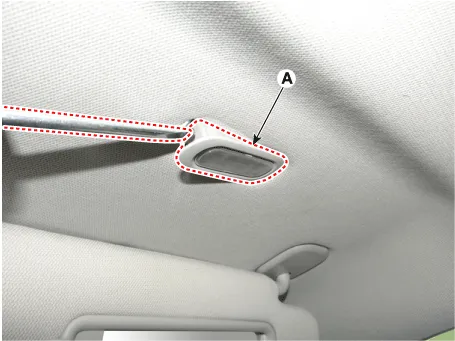

Remove the vanity lamp (A) using a flat-tip screwdriver.
|
| 3. |

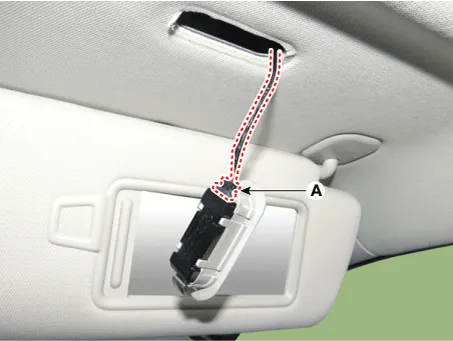

Disconnect the vanity lamp connector (A).
|
| Installation |
| 1. |
Connect the vanity lamp connector. |
| 2. |
Install the vanity lamp. |
| 3. |
Connect the negative (-) battery terminal. |
