Kia Stinger CK: Lighting System / Luggage Room Lamp
Kia Stinger (CK) 2018-2023 Service Manual / Body Electrical System / Lighting System / Luggage Room Lamp
Repair procedures
| Removal |
| 1. |
Disconnect the negative (-) battery terminal. |
| 2. |

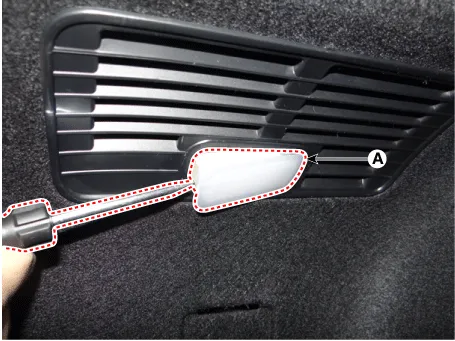

Using a screwdriver or remover, separate the luggage room lamp (A).
|
| 3. |

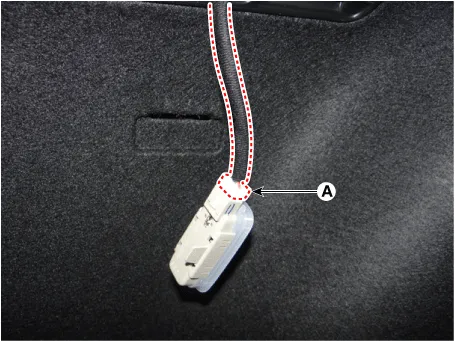

Disconnect the luggage room lamp connector (A).
|
| Installation |
| 1. |
Connect the luggage room lamp connector. |
| 2. |
Install the luggage room lamp. |
| 3. |
Connect the negative (-) battery terminal. |
