Kia Stinger CK: Lighting System / High Mounted Stop Lamp
Kia Stinger (CK) 2018-2023 Service Manual / Body Electrical System / Lighting System / High Mounted Stop Lamp
Repair procedures
| Removal |
| 1. |
Disconnect the negative (-) battery terminal. |
| 2. |
Remove the tailgate upper trim. (Refer to Body - "Tailgate Trim") |
| 3. |

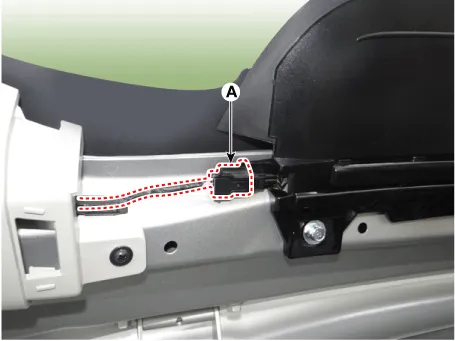

Disconnect the high mounted stop lamp connector (A).
|
| 4. |

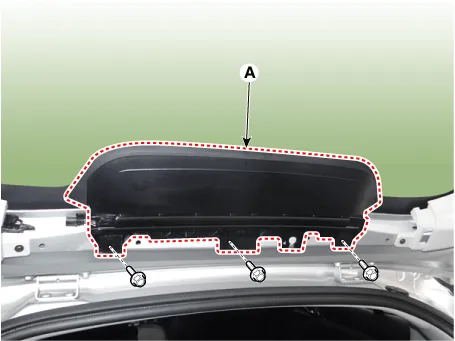

Remove the high mounted stop lamp (A) after loosening the mounting bolts.
|
| Installation |
| 1. |
Install the high mounted stop lamp. |
| 2. |
Connect the high mounted stop lamp connector. |
| 3. |
Install the tailgate upper trim. |
| 4. |
Connect the negative (-) battery terminal. |
