Kia Stinger CK: Fuel Delivery System / Sub Fuel Sender
Kia Stinger (CK) 2018-2023 Service Manual / Engine Control / Fuel System / Fuel Delivery System / Sub Fuel Sender
Repair procedures
| Removal |
| 1. |
Release the residual pressure in fuel line. (Refer to the Fuel Delivery System - "Release Residual Pressure in Fuel Line") |
| 2. |
Switch "OFF" the ignition and disconnect the negative (-) battery terminal. |
| 3. |
Remove the rear seat cushion. (Refer to Body - "Rear Seat Assembly") |
| 4. |
Remove the sub fuel sender service cover (A) after loosening the mounting screws.
|
| 5. |
Disconnect the sub fuel sender connector (A).
|
| 6. |

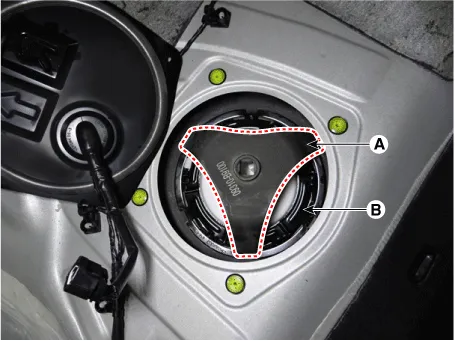

Remove the locking ring (B) by using the special service tool (A) [No.: 09310-B8100].
|
| 7. |

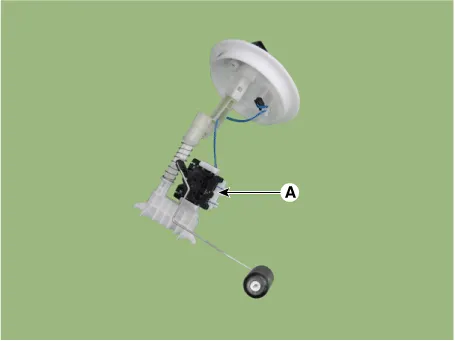

Remove the sub fuel sender (A).
|
| Installation |
| 1. |
Install in the reverse order of removal. |
