Kia Stinger: Wide Sunroof / Moving Glass

Kia Stinger CK 2018-2024 Service Manual / Front Seat Belt / Wide Sunroof / Moving Glass

Repair procedures

Put on gloves to protect your hands.


Use a plastic panel removal tool to remove interior trim pieces without marring the surface.

Take care not to bend or scratch the trim and panels.


Tilt the moving glass by using the wide sunroof switch.

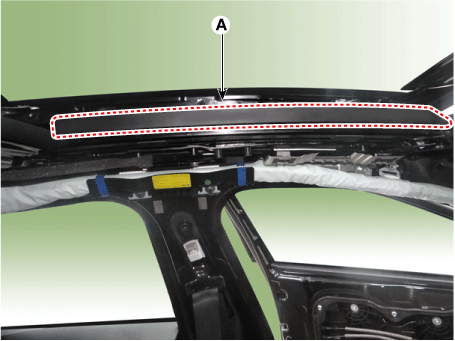

Remove the both sides mechanism cover (A).

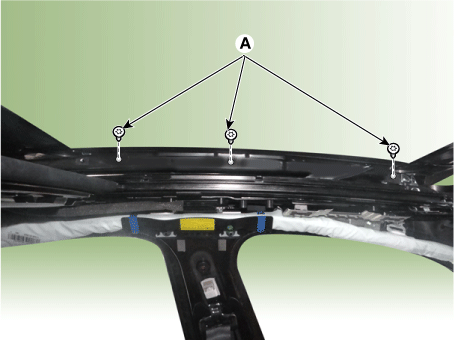

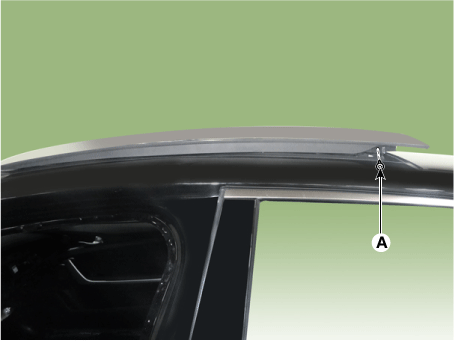

Loosen the mounting screws (A) on both sides.

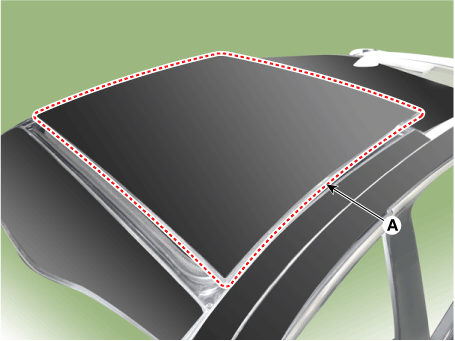

Carefully lift up the moving glass (A) and then remove it.


Install in the reverse order of removal.


After replacing the movable glass, adjust the alignment if needed.

Wide Sunroof
Components and components location Components 1. Sub frame assembly 2. Front fixed panel assembly 3. Wind deflector assembly 4. Roof side molding 5. Roll ...

Wide Sunroof Deflector
Repair procedures Replacement 1. Completely open the moving glass using the wide sunroof switch. 2. Remove the wide sunroof deflector (A) after l ...
