Kia Stinger: Steering System
Repair procedures
| Service Adjustment Procedure |
Steering Wheel Play Inspection
| 1. |
Turn the steering wheel so that the front wheels are facing straight ahead. |
| 2. |

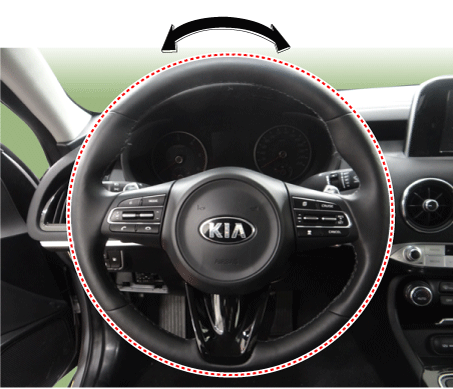

Measure the distance that the steering wheel can be turned with out moving the front wheels.
|
| 3. |
If the play exceeds standard value, inspect the steering column, shaft, and linkages. |
Checking Stationary Steering Effort
| 1. |
Position the vehicle on a level surface and place the steering wheel in the straight ahead position. |
| 2. |
Start the engine and turn the steering wheel from lock to lock several times to warm up the power steering fluid. |
| 3. |

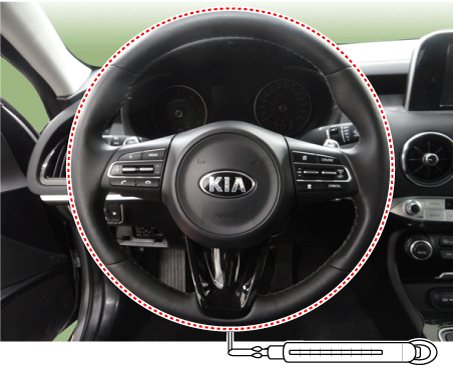

Attach a spring scale to the steering wheel. With the idle RPM, pull the scale and read it as soon as the tires begin to turn.
|
| 4. |
If the measured value exceeds standard value, inspect the steering gear box. |
Troubleshooting
| Troubleshooting |
|
Symptom |
Probable cause |
Remedy |
|
Play in steering |
Loose yoke plug |
Retighten |
|
Loose steering gear mounting bolts |
Retighten |
|
|
Loose or worn tie rod end |
Retighten or replace as necessary |
|
|
Steering wheel does not return properly |
Excessive turning resistance of tie rod end |
Replace |
|
Yoke plug excessively tight |
Adjust |
|
|
Tie rod and/or ball joint not turning smoothly |
Replace |
|
|
Loose mounting of gear box mounting bracket and/or worn steering shaft joint
|
Retighten |
|
|
Worn steering shaft joint and/or body grommet |
Correct or replace |
|
|
Rattling or chucking noise in the rack and pinion |
Loose gear box bracket |
Retighten |
|
Loose tie rod end and/or ball joint |
Retighten |
|
|
Worn tie rod and/or ball joint |
Replace |
