Kia Stinger: Air Conditioning System / Receiver-Drier

Kia Stinger CK 2018-2024 Service Manual / Heating, Ventilation And Air Conditioning / Air Conditioning System / Receiver-Drier

Repair procedures
Replacement
1.

Remove the condenser.

2.

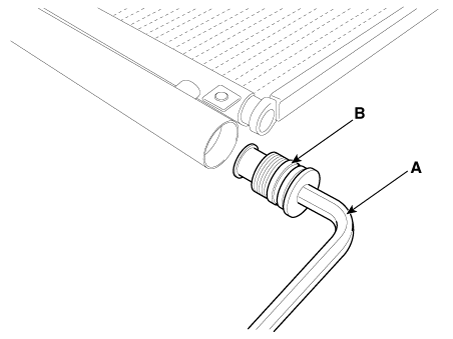

Remove the cap (B) from the bottom of the condenser using an L wrench (A).

Tightening torque :

9.8 - 14.7 N·m (1.0 - 1.5 kgf·m, 7.2 - 10.8 lb·ft)

3.

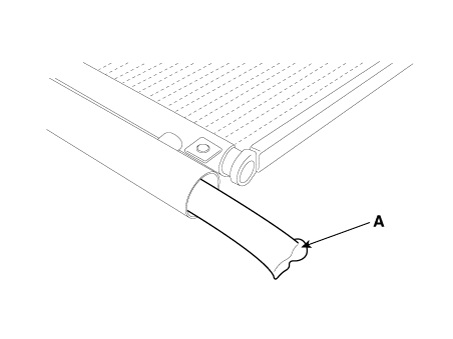

Remove the receiver-drier (A) from condenser using long nose pliers. Check for crumbled receiver-drier and clogged bottom cap filter.

4.

Apply air conditioning compressor oil along the O-rings and threads of the new bottom cap.

5.

Insert a new receiver-drier into the receiver drier tank. The receiver-drier must be sealed in vacuum before it is exposed to air for use.

6.

Install a new bottom cap to the condenser.



Always replace the receiver-drier and bottom cap at the same time.

Replace the O-rings with new ones at each fitting, and apply a thin coat of refrigerant oil before installing them. Be sure to use the right O-rings for R-134a, R-1234yf to avoid leakage.

Be careful not to damage the radiator and condenser fins when installing the condenser.

Charge the system, and test its performance.
