Kia Stinger: Integrated Memory Seat (IMS) System / Integrated Memory Seat (IMS) Unit

Kia Stinger CK 2018-2024 Service Manual / Body Electrical System / Integrated Memory Seat (IMS) System / Integrated Memory Seat (IMS) Unit

Components and components location
Components

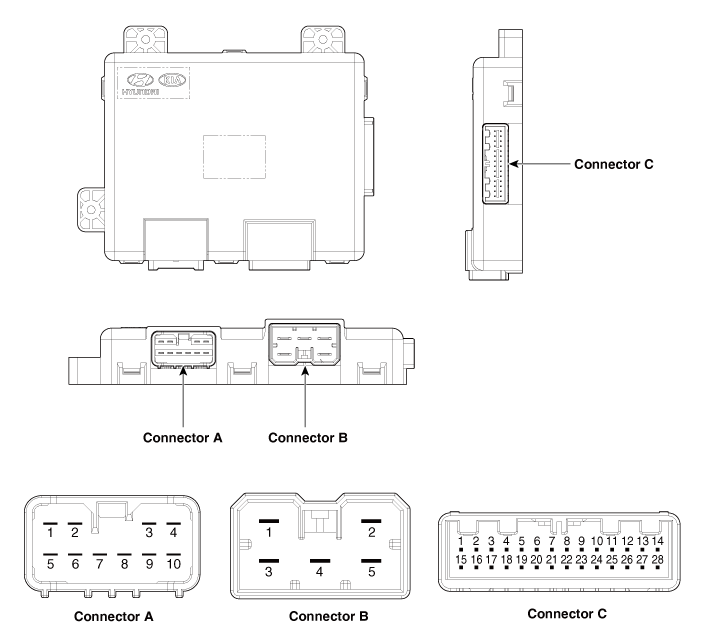

Connector Pin Information

No
Connector A
Connector B
Connector C
1
Cushion extension motor (Front)
Battery (+)
Slide switch (Front)
2
Recline motor (Front)
Ground
Recline switch (Front)
3
Rear height motor (Up)
Battery (+)
Frout tilt switch (Up)
4
Slide motor (Front)
-
Rear height switch (Up)
5
Cushion extension motor (Rear)
Ground
Cushion extension switch (Front)
6
Recline motor (Rear)

B-CAN (High)
7
Front tilt motor (Up)
B-CAN (Low)
8
Front tilt motor (Down)
-
9
Rear height motor (Down)
-
10
Slide motor (Rear)
Slide hall sensor
11

Front tilt hall sensor
12
-
13
Seat position sensor power
14
IGN1
15
Slide switch (Rear)
16
Recline switch (Rear)
17
Front tilt switch (Down)
18
Rear height switch (Down)
19
Cushion extension switch (Rear)
20
Ground
21
-
22
-
23
-
24
Recline hall sensor
25
Rear height hall sensor
26
Cushion extension hall sensor
27
-
28
Battery (+)

Schematic diagrams

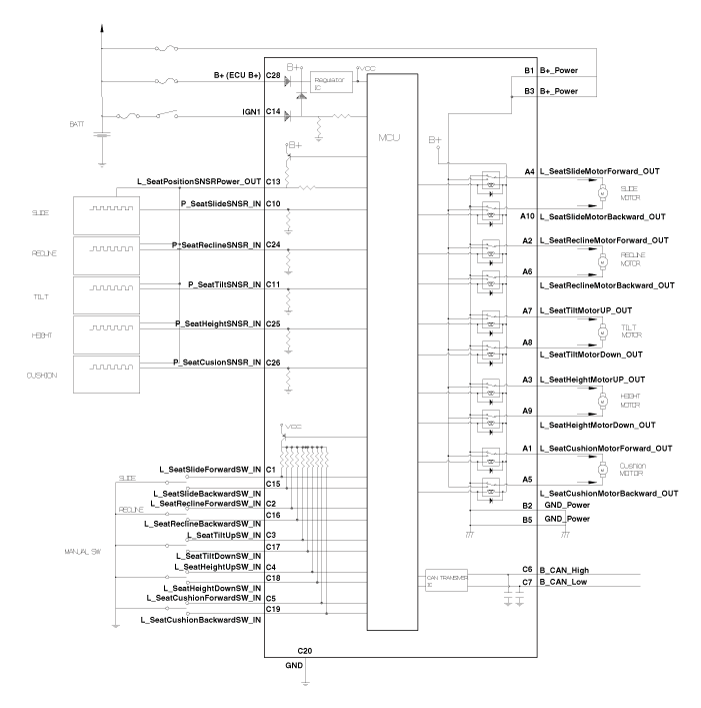

Circuit Diagram

Repair procedures
Removal
1.

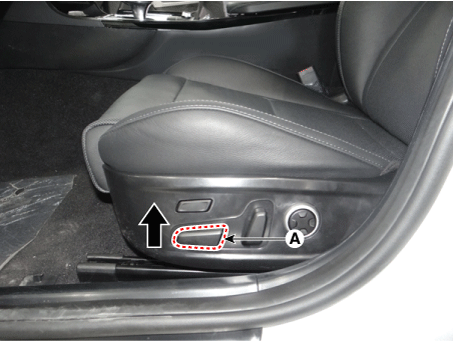

Before removing the driver side seat assembly, pull it upward to the maximum by pushing the front seat height adjusting switch (A).

2.

Disconnect the negative (-) battery terminal

3.

Remove the driver front seat assembly.

(Refer to Body - "Front Seat Assembly")

4.

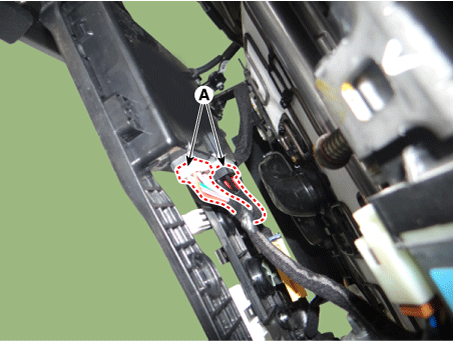

Disconnect the integrated memory seat unit connectors (A).

5.

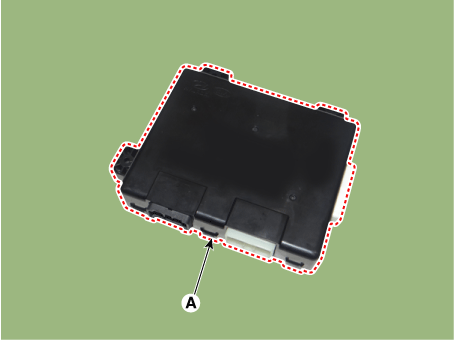

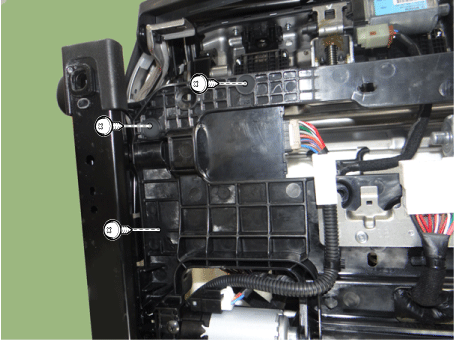

Remove the integrated memory seat unit (A) after loosening the mounting screws.

Installation
1.

Install the integrated memory seat unit.

2.

Connect the integrated memory seat unit connectors.

3.

Install the driver front seat assembly.

4.

Connect the negative (-) battery terminal.

5.

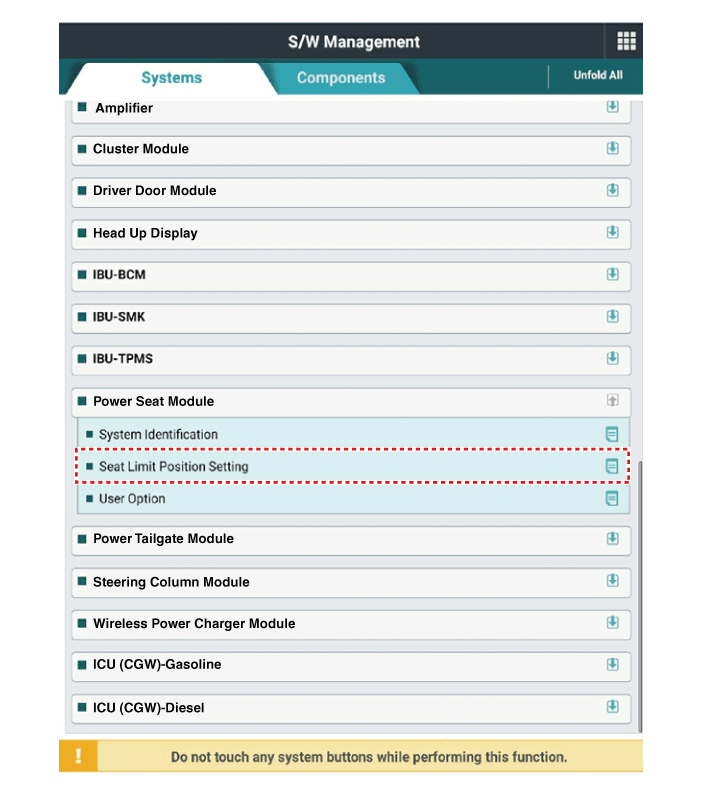

Perform the seat limit position setting using the KDS.
