Kia Stinger CK: Roof Trim / Assist Handle

Kia Stinger (CK) 2018-2023 Service Manual / Front Seat Belt / Roof Trim / Assist Handle

Components and components location

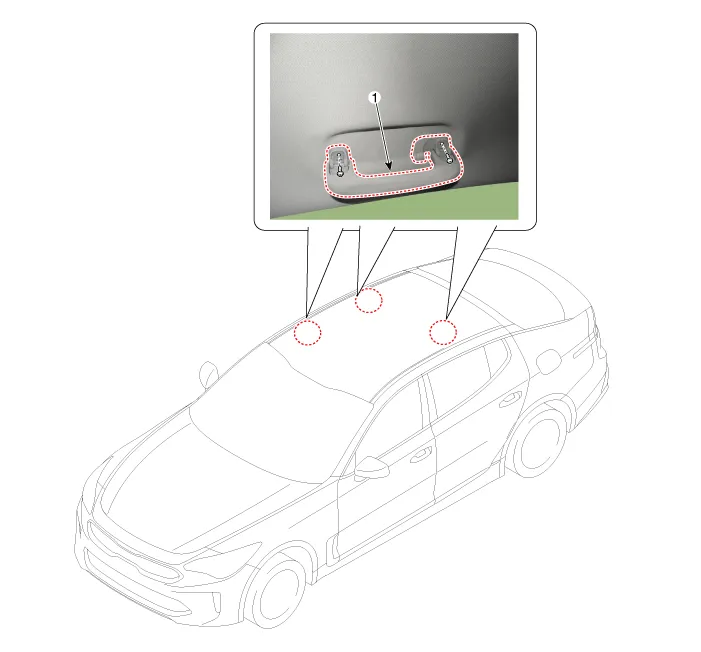

Component Location

1. Assist handle


Repair procedures
Replacement


Put on gloves to protect your hands.


•

Use a plastic panel removal tool to remove interior trim pieces without marring the surface.

•

Take care not to bend or scratch the trim and panels.

1.

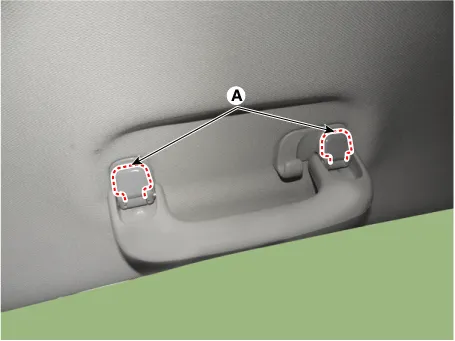

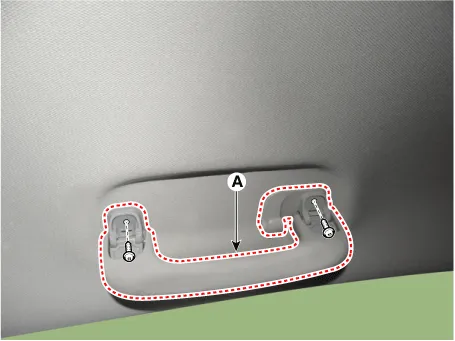

Remove the caps (A) and screws, then remove the assist handle (B).

2.

Install in the reverse order of removal.

Sunvisor

Roof Trim Assembly
