Kia Stinger CK: Drive Belt System / Drive Belt Tensioner

Kia Stinger (CK) 2018-2023 Service Manual / Engine Mechanical System / Drive Belt System / Drive Belt Tensioner

Repair procedures

Removal and Installation

1.	Remove the drive belt. (Refer to Drive Belt System - "Drive Belt")

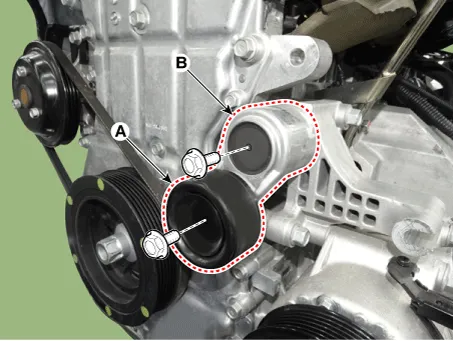

Remove the drive belt auto tensioner pulley (A).

Tightening torque :

53.9 - 63.7 N·m (5.5 - 6.5 kg·m, 39.8 - 47.0 lb·ft)

Tensioner pulley bolt is left-hands screw.

Remove the drive belt tensioner (B).

Tightening torque :

53.9 - 63.7 N·m (5.5 - 6.5 kg·m, 39.8 - 47.0 lb·ft)

4.	Install in the reverse order of removal.
