Kia Stinger CK: Fuel Delivery System / Filler-Neck Assembly
Kia Stinger (CK) 2018-2023 Service Manual / Engine Control / Fuel System / Fuel Delivery System / Filler-Neck Assembly
Repair procedures
| Removal |
| 1. |
Switch "OFF" the ignition and disconnect the negative (-) battery terminal. |
| 2. |
Remove the fuel filler cap after opening the fuel filler door. |
| 3. |
Lift the vehicle. |
| 4. |
Remove the rear-left wheel & tire and wheel house cover. |
| 5. |
Disconnect the fuel filler hose (A) and leveling hose (B).
|
| 6. |
Disconnect the ventilation (A).
|
| 7. |

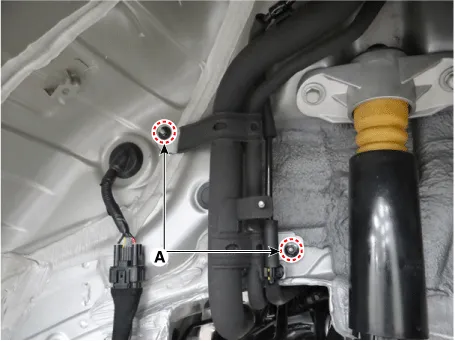

Remove the filler-neck assembly from the vehicle after removing bracket mounting nuts (A).
|
| Installation |
| 1. |
Install in the reverse order of removal. |
