Kia Stinger CK: Engine Control System / Fuel Pressure Control Valve (FPCV)

Kia Stinger (CK) 2018-2023 Service Manual / Engine Control / Fuel System / Engine Control System / Fuel Pressure Control Valve (FPCV)

Specifications

Specification

Item	Specification
Coil Resistance (Ω)	0.47 - 0.53 [20°C(68°F)]

Description and operation

Description

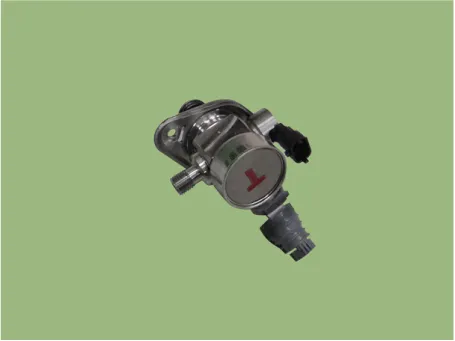

Installed on the high pressure fuel pump, the Fuel Pressure Control Valve controls flow of fuel into the injectors in accordance with the ECM signal calculated based on various engine conditions.

Schematic diagrams

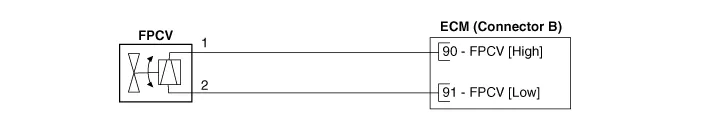

Circuit Diagram

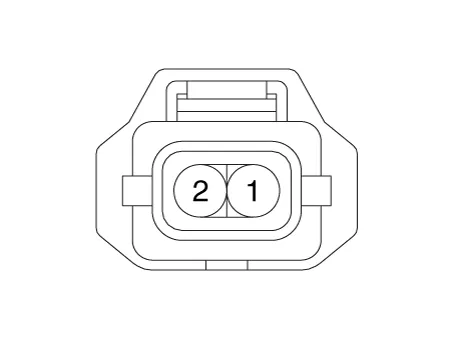

Harness Connector

Repair procedures

Inspection

1.	Switch "OFF" the ignition and disconnect the negative (-) battery terminal.

2.	Disconnect the fuel pressure regulator valve connector.

3.	Measure resistance between the fuel pressure regulator valve terminals 1 and 2.

Check that the resistance is within the specification.

Specification: Approx. 0.5 Ω [20°C (68°F)]

Removal

Fuel Pressure Control Valve cannot be replaced on its own; it should be replaced with the high pressure fuel pump.

(Refer to Fuel System - "High pressure fuel pump")

Installation

Fuel Pressure Control Valve cannot be replaced on its own; it should be replaced with the high pressure fuel pump.

(Refer to Fuel System - "High pressure fuel pump")

Troubleshooting

Signal Waveform
