Kia Stinger CK: Body Electrical System / Fuses And Relays

Kia Stinger (CK) 2018-2023 Service Manual / Body Electrical System / Fuses And Relays

Contents:

Components and components location

Component Location

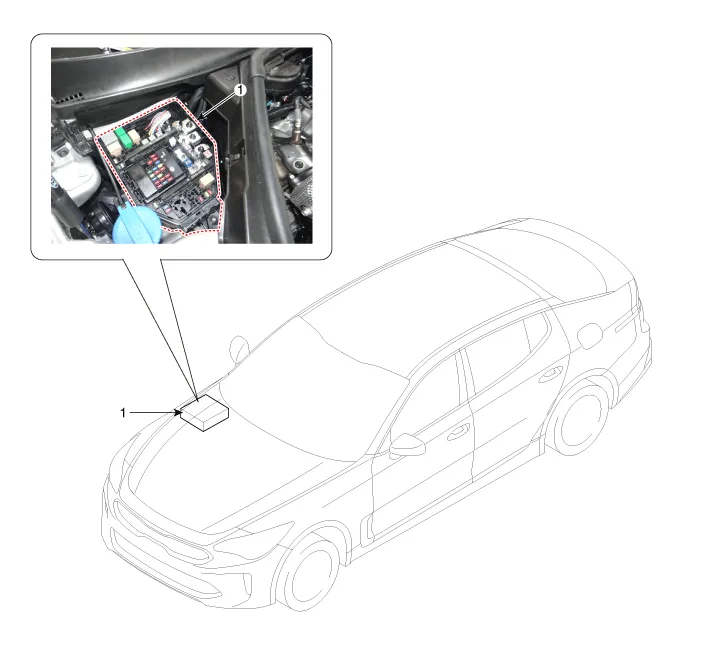

[Engine Room]

1. Engine room junction block

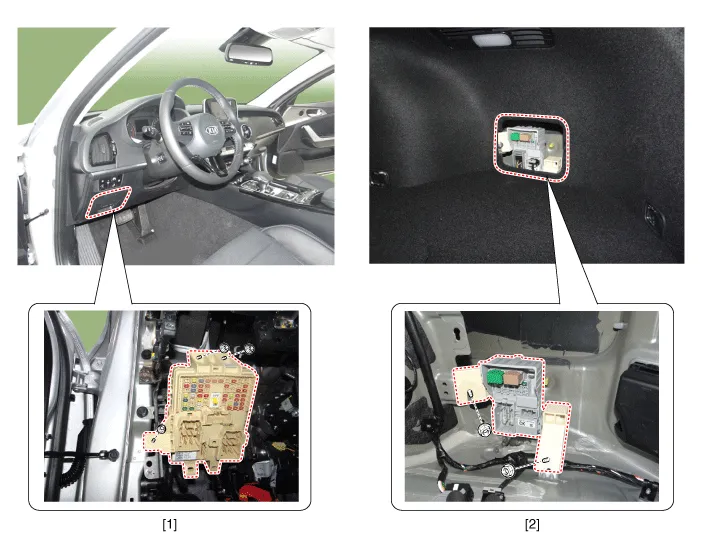

[Interior Fuse & Relay]

1. Integrated central control unit (ICU)

2. Rear sub junction block (RSJB)

Relay Box (Engine Compartment) ➤

Relay Box (Passenger Compartment) ➤

Fuel Filler Door Open Switch

Relay Box (Engine Compartment)
