Kia Stinger CK: Lubrication System / Oil Cooler

Kia Stinger (CK) 2018-2023 Service Manual / Engine Mechanical System / Lubrication System / Oil Cooler

Repair procedures

Removal

1.	Drain the coolant. (Refer to Cooling System - "Coolant")

2.	Remove the oil filter. (Refer to Lubrication System - "Engine Oil")

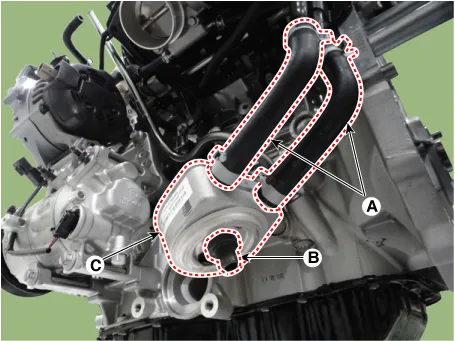

3.	Disconnect the oil cooler coolant hoses (A).

4.	Loosen the mounting bolt (B) and remove the oil cooler assembly (C).

Installation

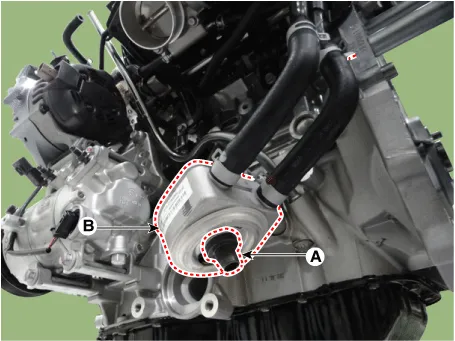

Apply a light coat of engine oil to the oil cooler packing surface and then install the oil cooler (B) with fix bolt (A).

Tightening torque:

44.1 - 53.9 N·m (4.5 - 5.5 kgf·m, 32.5 - 39.8 lb·ft)

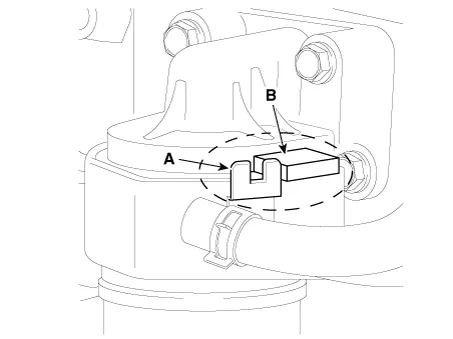

Fix position of oil cooler stopper(A) where oil cooler resists on ladder frame stopper (B).

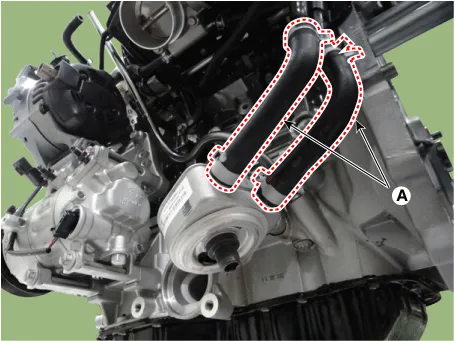

2.	Connect the oil cooler coolant hoses (A).

3.	Install the oil filter. (Refer to Lubrication System - "Engine Oil")

4.	Fill the radiator with coolant and check for leaks.
