Kia Stinger CK: Automatic Transmission Control System / Parking Switch

Kia Stinger (CK) 2018-2023 Service Manual / Automatic Transmission System / Automatic Transmission Control System / Parking Switch

Specifications

Item	Specification
Output type	PWM (S1, S2), ON/OFF (Ps, Ns)
Power supply (V)	5 (S1, S2), 12 (Ps, Ns)

Signal code table

Signal	P	Not P
S1	5 V	0
S2	0	5 V
Ps	12 V	0
Ns	0	12 V

Components and components location

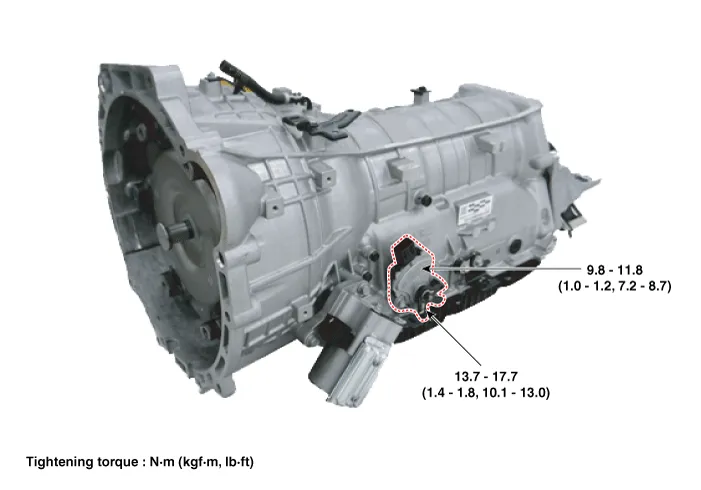

Components Location

1. Parking switch

2. Parking release lever

Description and operation

Description

The system determines whether parking is active in the TCM by whether the S1 (P) pin and S2 (Not P) pin are ON or OFF, based on the working angle.

Schematic diagrams

Circuit Diagram

Repair procedures

Inspection

Inspect the connector thoroughly for looseness, poor connection, bending, corrosion, contamination, deformation, or damage.

1.	Disconnect the parking switch connector.

2.	Turn Ignition "ON", & engine "OFF".

Measure the each signal in "P" range or "not p" range.

Signal code table

Signal	P	Not P
S1	10 - 38.4%	41.1 - 90%
S2	90 - 61.6%	58.9 - 10%

Connection table

Pin	Connection information
1	Ground (Ps,Ns)
2	Ps
3	-
4	Ns
5	Power (5V)
6	Ground (5V)
7	S1
8	S2

Removal

1.	Remove the parking release cable after loosening the fastener (A).

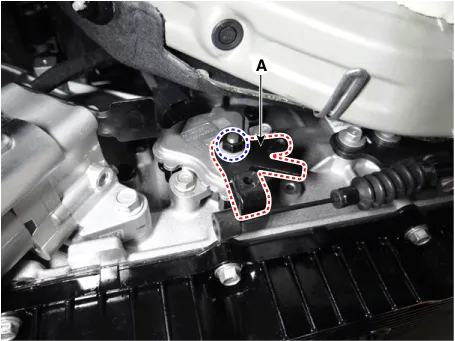

2.	Remove the parking release lever (A) after loosening the nut.

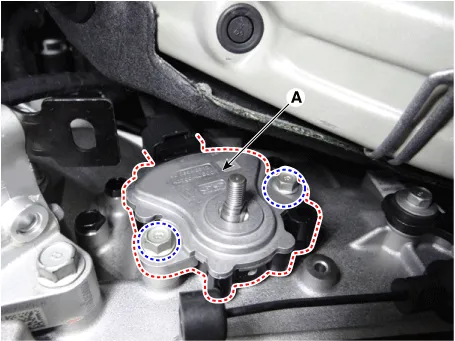

3.	Remove the parking switch (A) after loosening the bolts.

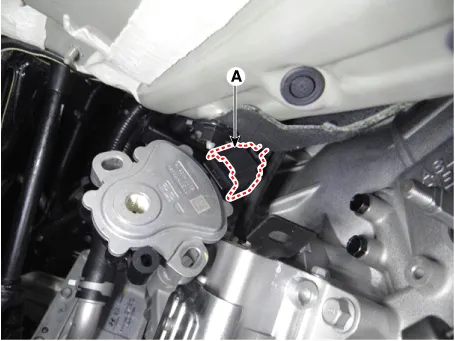

4.	Disconnect the parking switch connector (A).

Installation

1.	Connect the parking switch connector (A).

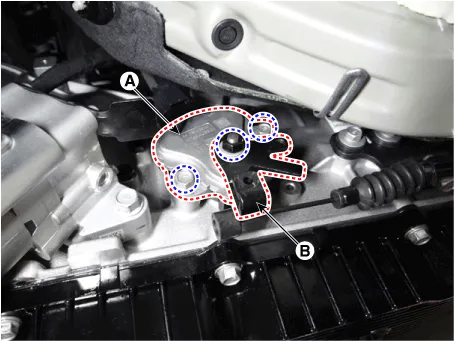

Install the parking switch (A) and parking release lever (B).

Lightly tighten the bolts and nut so that necessary adjustments can be made.

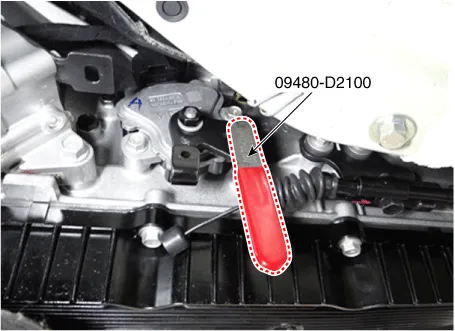

3.	Align the hole in the parking release lever with the "P" position hole of the parking switch and then insert the SST parking switch guide pin (09480-D2100).

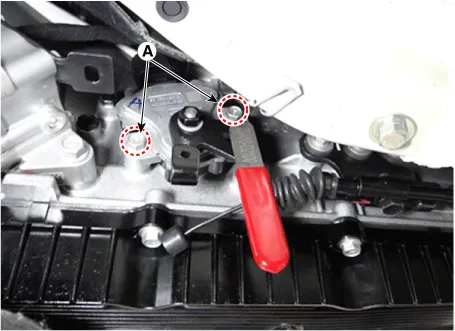

Tighten the parking switch mounting bolts (A).

Tightening torque :

9.8 - 11.8 N·m (1.0 - 1.2 kgf·m, 7.2 - 8.7 lb·ft)

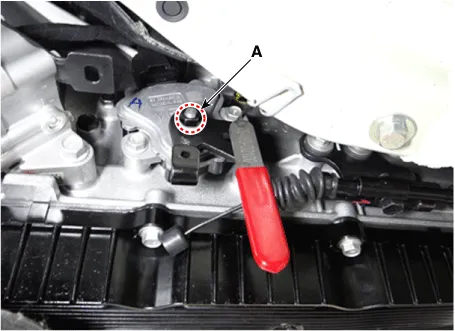

Tighten the parking release lever mounting nut (A).

Tightening torque :

13.7 - 17.7 N·m (1.4 - 1.8 kgf·m, 10.1 - 13.0 lb·ft)

6.	Remove ths SST (09480-D2100)

Tighten the fastener (A) after installing the parking release cable.

The existing fastener (A) must be replaced with a new one. (Do not reuse it.)
