Components and components location
Components

1. E-Shifter
2. Parking release actuator
3. Parking release cable
4. Parking release lever

Schematic diagrams

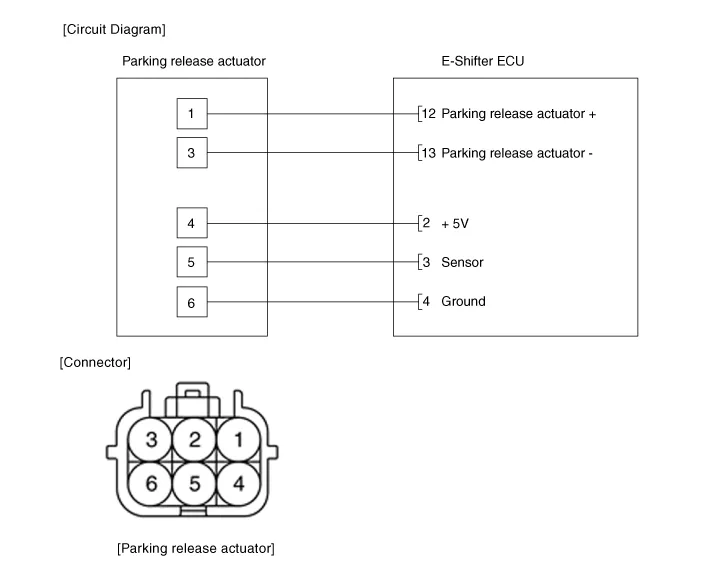

Circuit Diagram

Repair procedures
Removal
1.

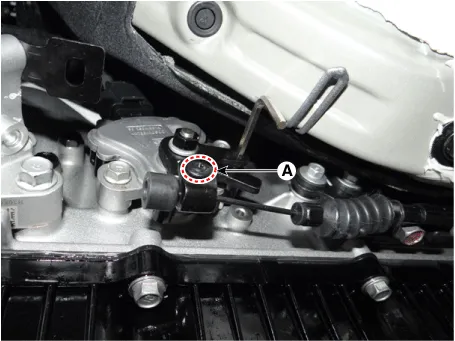

Remove the parking release cable after loosening the fastener (A).



The existing fastener (A) must be replaced with a new one. (Do not reuse it.)

2.

Remove the parking release cable from the bracket after loosening a bolt (A).



When installing , tighten the bolt (A) to the specified torque after removing gap by pushing the parking release cable in the direction of the arrow.

Tightening torque :

12.7 - 15.7 N·m (1.3 - 1.6 kgf·m, 9.4 - 11.6 lb·ft)

3.

Remove the floor console assembly.

(Refer to Body - “Floor Console Assembly”)

4.

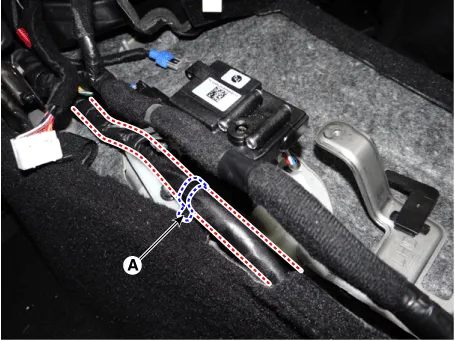

Remove the wiring fixing clip (A) from the parking release actuator.
5.

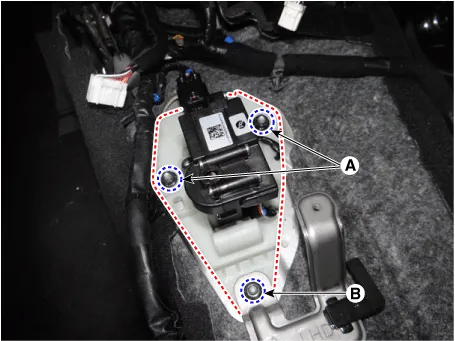

Loosen the parking release actuator mounting nuts (A, B).

Tightening torque :

(A) 9.8 - 14.7 N·m (1.0 - 1.5 kgf·m, 7.2 - 10.8 lb·ft)

(B) 8.8 - 13.7 N·m (0.9 - 1.4 kgf·m, 6.5 - 10.1 lb·ft)

6.

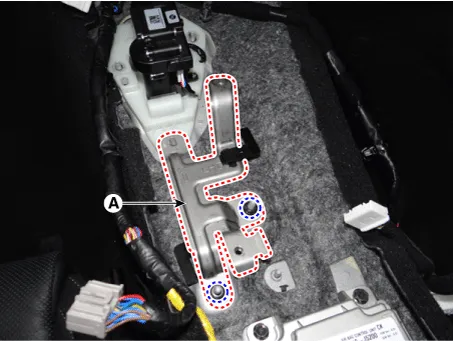

Remove the bracket (A).

Tightening torque :

8.8 - 13.7 N·m (0.9 - 1.4 kgf·m, 6.5 - 10.1 lb·ft)

7.

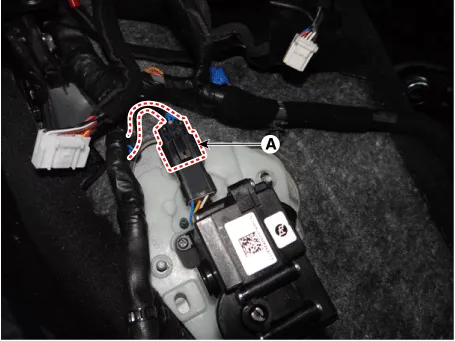

Disconnect the parking release actuator connector (A). Then, remove the cable by pulling it toward the vehicle interior.
Installation
1.

Install in the reverse order of removal.
